Description
| Brand | Idoing | |
| Din | One din | |
| Operating System | Android system 12 | |
| CPU | ARM 12NM 1.8GHZ, Octa core 2*A75+6*A55 | |
| DDR | SAMSUNG DDR3 4GB | |
| EMMC | 64GB | |
| Max External Memory | 128G | |
| Radio | FM/AM | |
| Screen | 2.5D QLED Full Touch Screen | |
| Screen Resolution | 1280*720 | |
| GPU | ARM Mali G52 614.4MHz | |
| Radio IC | NXP 6686 | |
| Power amplifier IC | TDA7851L | |
| Bluetooth IC | BC5.1 | |
| Power supply | 4*45W max | |
| Video Decoder | 1080P HW | |
| DSP | 32-Band Equalisation | |
| OSD Language | English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages | |
| Built in | Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI | |
| Support | Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR |
| Multi media Parameters | |
| Music Format | MP3,WMA,AAC,RM,FLAC etc |
| Video Format | MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip |
| Picture Format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| Frenqency Range | FM:76.0MHz-108.0MHz |
| Frenqency Range | AM: 522KHz-1620KHz |
| Country | Australia,Europe,Russia,USA1,USA2, |
| Amplifer Parameters | |
| Test Voltage | 14.4V |
| Max output power | 4*45W |
| GPS Parameters | |
| Support Map | Android 12.0 Map:google/here/sygic/tomtom/waze/igo... |
| Main Frenqency | 1.575GHz |
| WIFI Parameters | |
| Power supply | Vcc_3.3V |
| Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| Interface type | USB2.0 |
| Frequency | 2.4-2.484GHz |
| Modulation | OFDM/DBPSK/DQPSK/CCK |
| RF Power | 15dBM |
Could you take a picture to show your car center dash console if you are confused!

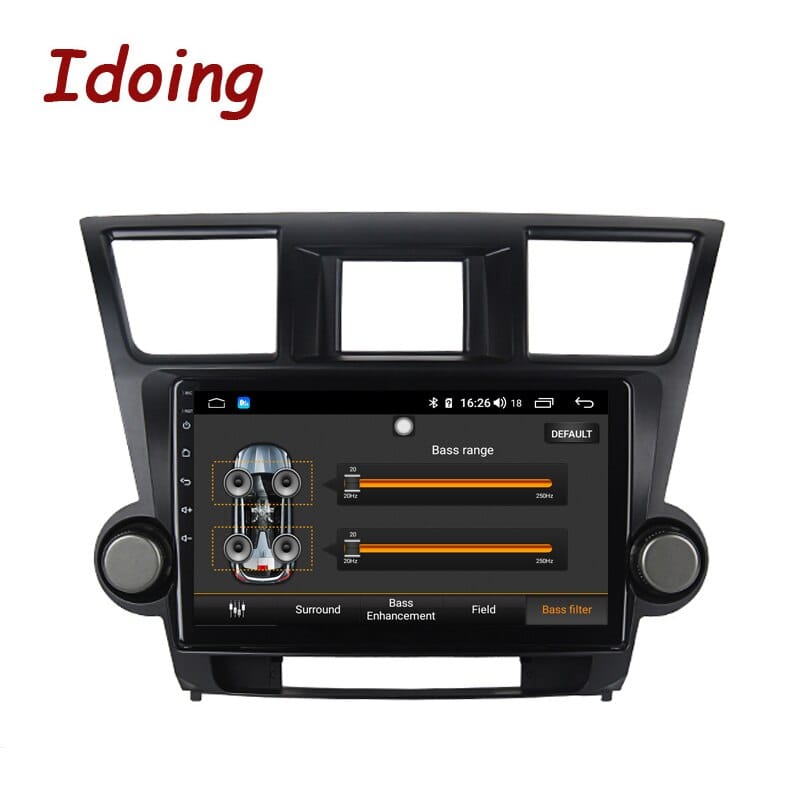

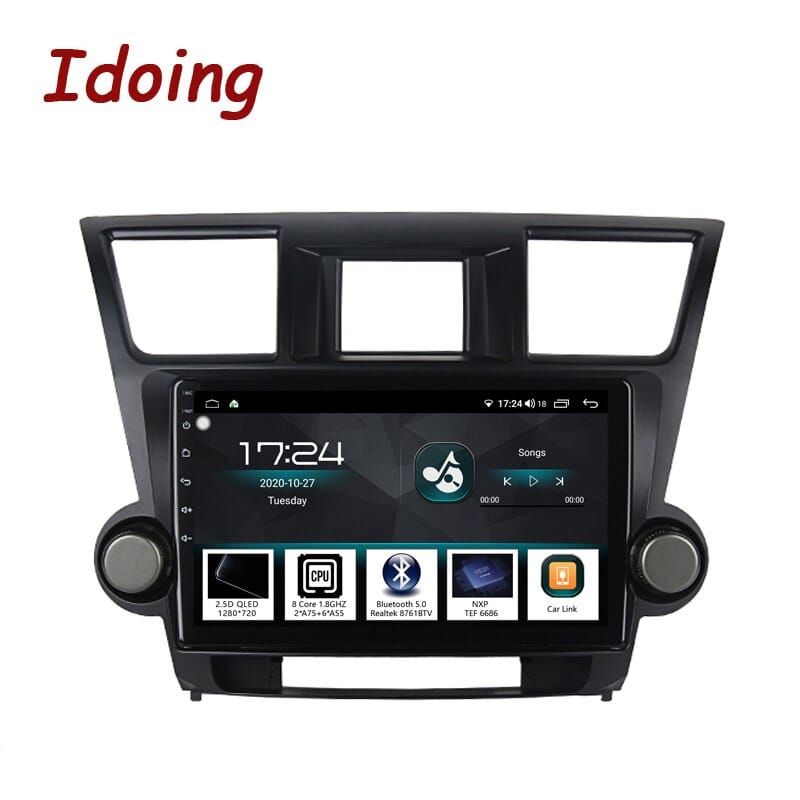

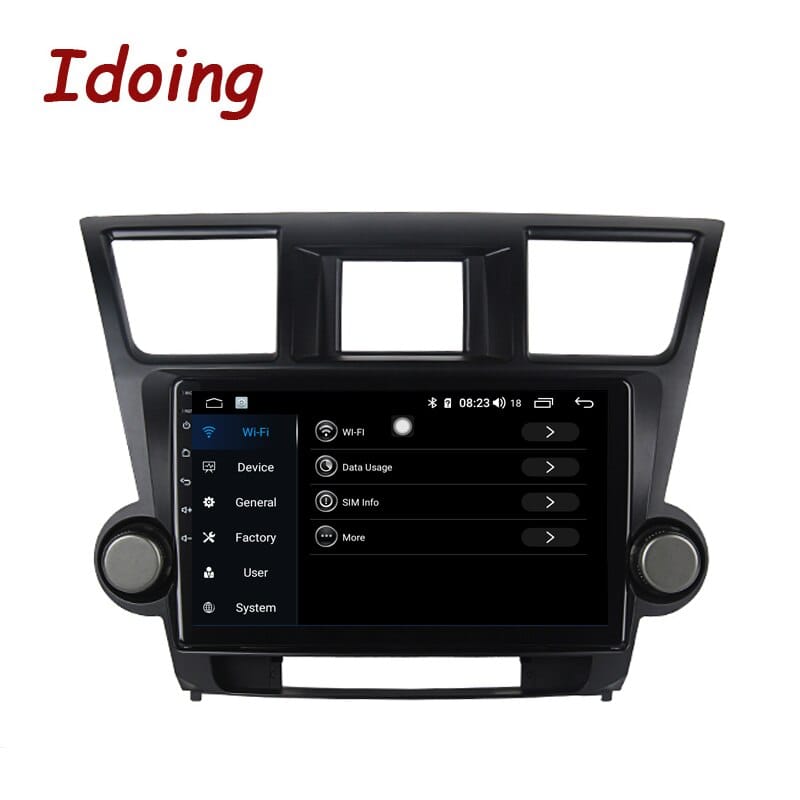

Idoing 10.2" Universal Newest Version Android Car GPS System
For Toyota Highlander 2 XU40 2007-2014
Before:
Product installation size(Very important)
All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of car company marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping cost.
Android 12.0 Operating System

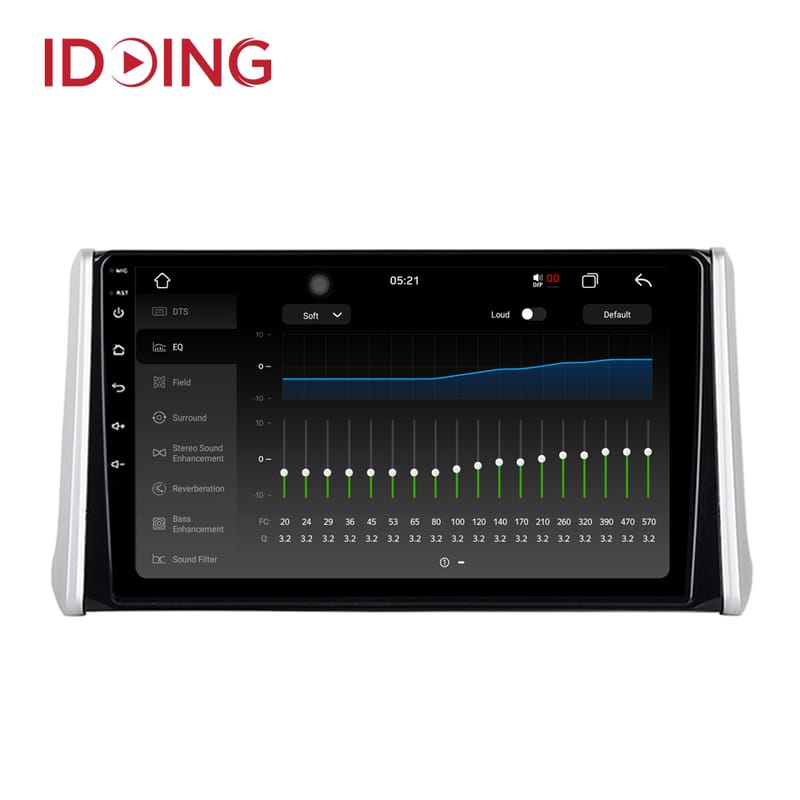

Build-in 32 EqualizerDigital Signal Processing(DSP)
32 Equalizer Adjustments
2.5D+QLED Display Screen
2.5D,prevent scraping,QLED screen for all viewing angles very clear.
What is 2.5D?Please check this video.https://youtu.be/klQffAjZ4fc
Built-in Car link (Wired/Wireless Carplay+Wired/Wireless Android Auto)
Picture in Picture
Minimize the default video player and watching video when using navagation,browser,etc.
FM/AM/RDS Radio
1.Automatic or manual station search function.
Bluetooth 5.1
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).
3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
Silicon crystal microphone
1.silicon crystal mic for bluetooth hand-free calling better sound quality.
2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.
Cool 3D Navigation (GPS+Glonass Dual Satellite)
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.map can be run the background to achieve music navigation functions.
3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.
4.Support maps:google/here/sygic/tomtom/waze/igo...
Screen Mirror Link
Using Easy-Connect APP,via USB charging cable and Bluetooth,you can mirror the android phone display such as main menu,photos/videos,Online navi maps.also you can control the Android Phone on this unit.can support the most Android Phone.
Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
Multimedia Function
Support full HD resolution 1920*1080P pixels videos.
Support media format: MP3, VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.SUPPORT.
Support 7 kinds of button colors
Support OBD2
You can connect a bluetooth OBD2 scanner tool to use this function.
Built-in 4G Modem
Support AHD Rear View Camera(Stock back camera plug and play on idoing stereo)
Support AHD reversing signal input with a resolution of 1080p.This requires an AHD dedicated camera.
Support DAB+
1.connect with a DAB+Box via USB port to use DAB+ function.
2.support input digital radio programs and touch operation.
3.support touchscreen to search programs.
Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
