Brand | Idoing |
Din | 1 din |
Operating System | Android 12 system |
CPU | ARM 12NM , Octa core 2.0 GHZ 2*A75+1.8GHZ 6*A55 |
DDR | SAMSUNG DDR3 4GB |
EMMC | 64GB |
Max External Memory | 128G |
Radio | FM/AM |
Screen | 2.5D IPS Full Touch Screen |
Screen Resolution | 1280*720 |
GPU | ARM Mali G52 614.4MHz |
Radio IC | NXP 6686 |
Power amplifier IC | TDA7850 |
Bluetooth IC | BC5.0 |
Power supply | 4*50W max |
Video Decoder | 1080P HW |
DSP | 32-Band Equalisation |
OSD Language | English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages |
Built in | Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI |

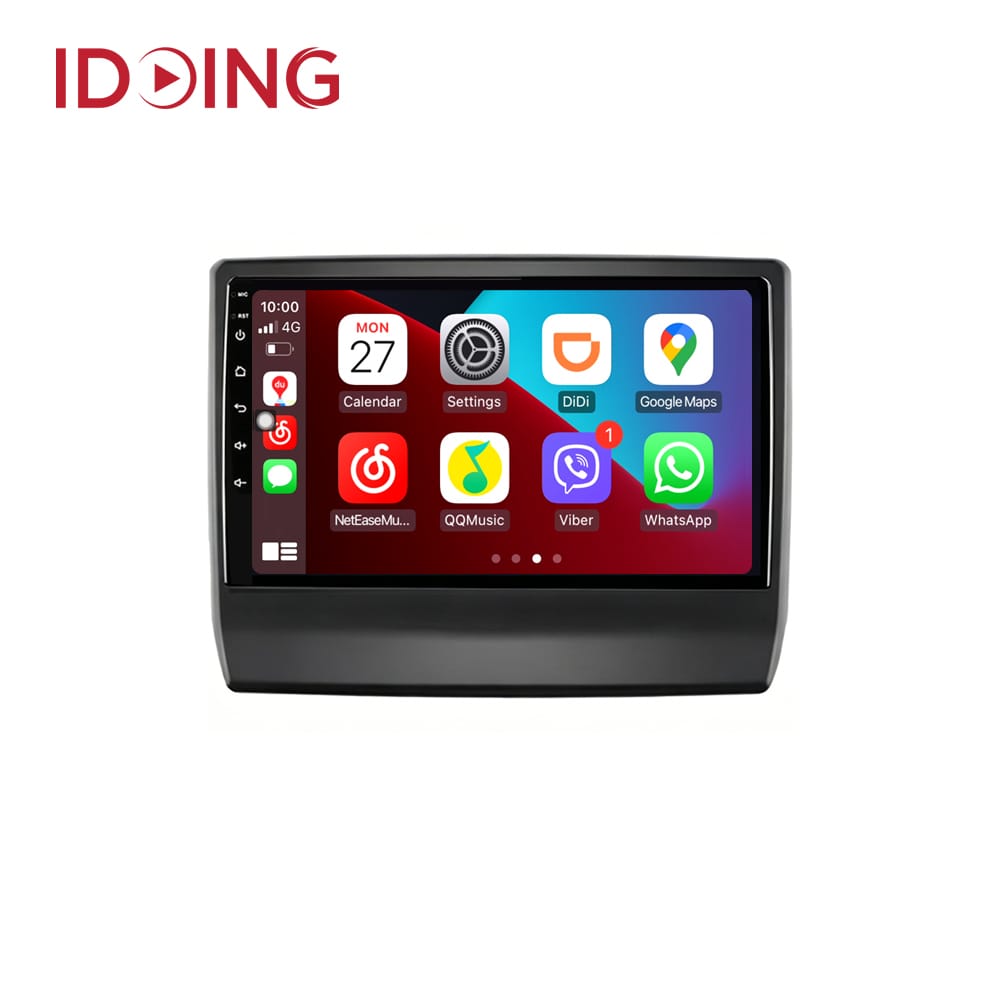

Support | Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR |
Multi media Parameters | |
Music Format | MP3,WMA,AAC,RM,FLAC etc |
Video Format | MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip |
Picture Format | JPG/BMP/JEPG/GIF/PNG |
Radio Parameters | |
Frenqency Range | FM:76.0MHz-108.0MHz |
Frenqency Range | AM: 522KHz-1620KHz |
Country | Australia,Europe,Russia,USA1,USA2, |
Amplifer Parameters | |
Test Voltage | 14.4V |
Max output power | 4*50W |
GPS Parameters | |
Support Map | Android Map:google/here/sygic/tomtom/waze/igo... |
Main Frenqency | 1.575GHz |
WIFI Parameters | |
Power supply | Vcc_3.3V |
Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
Interface type | USB2.0 |
Frequency | 2.4-2.484GHz |
Modulation | OFDM/DBPSK/DQPSK/CCK |
RF Power | 15dBM |
Vehicle Fit List and Installation TIPS:
car model number and year for your reference:
Provide you with more choices,for up to70national languages.

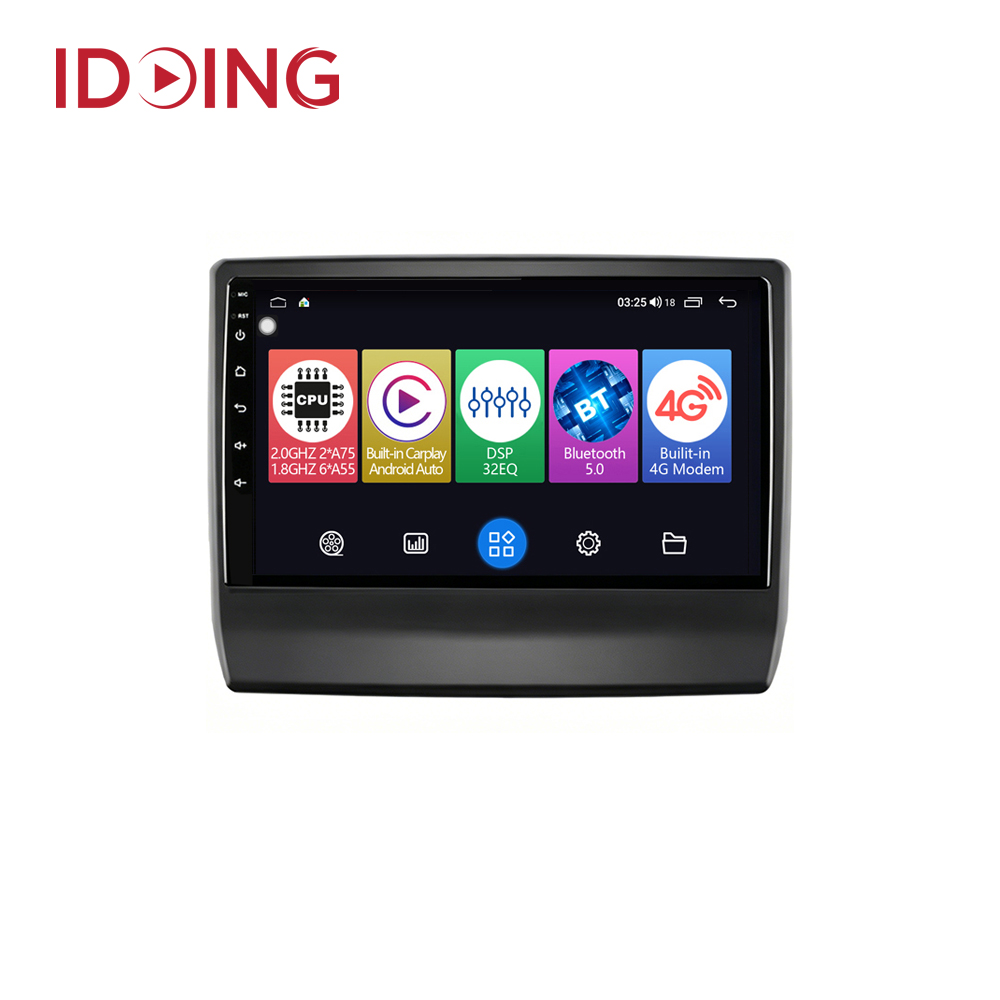

Android Operating System
Android 12.0 Operating System
ARM 12NM Octa-Core, 64 bit CPU
2.0GHz,Dual-Core ARM Cortex A75
1.8GHz,Hexa-Core ARM Cortex A55
Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
Multimedia Function

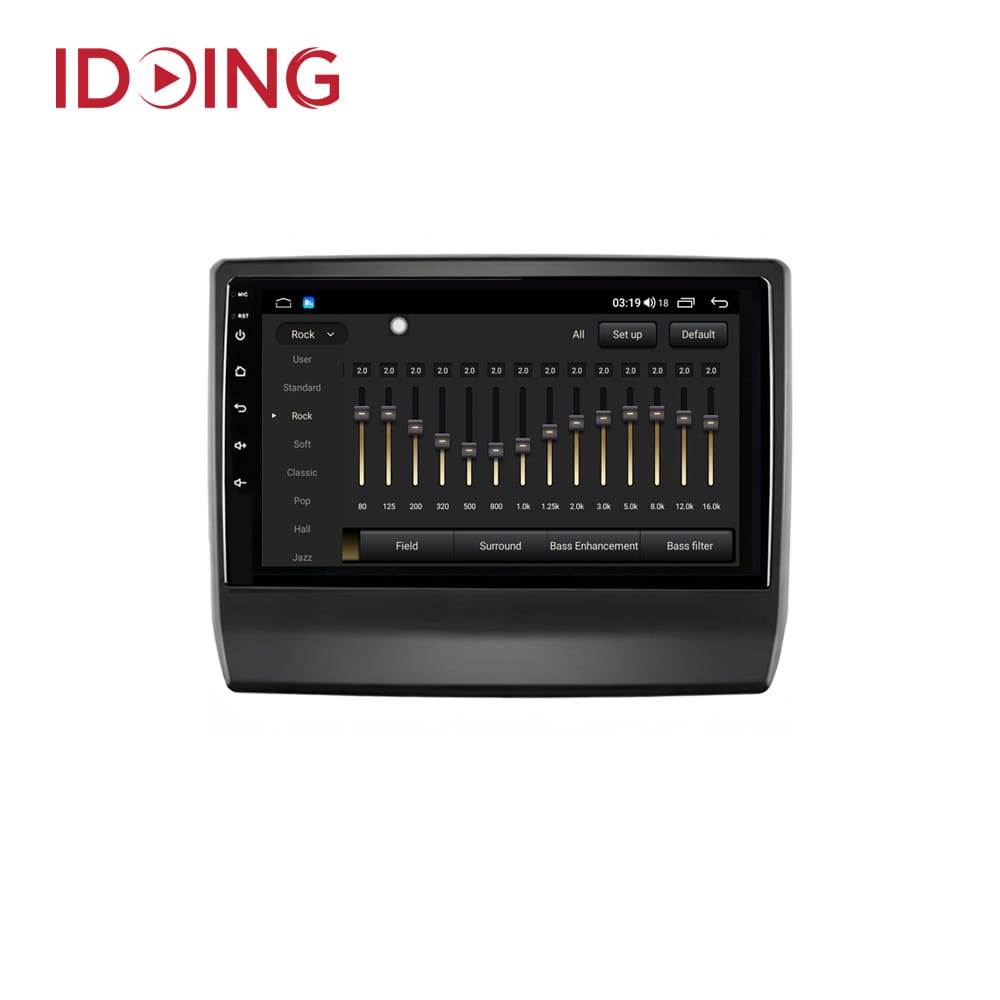

Build-in 32 EqualizerDigital Signal Processing(DSP)
32 Equalizer Adjustments
FM/AM/RDS Radio
1.Automatic or manual station search function.
Qualcomm bluetooth 5.0
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).
3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
Silicon crystal microphone
1.silicon crystal mic for bluetooth hand-free calling better sound quality.
2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

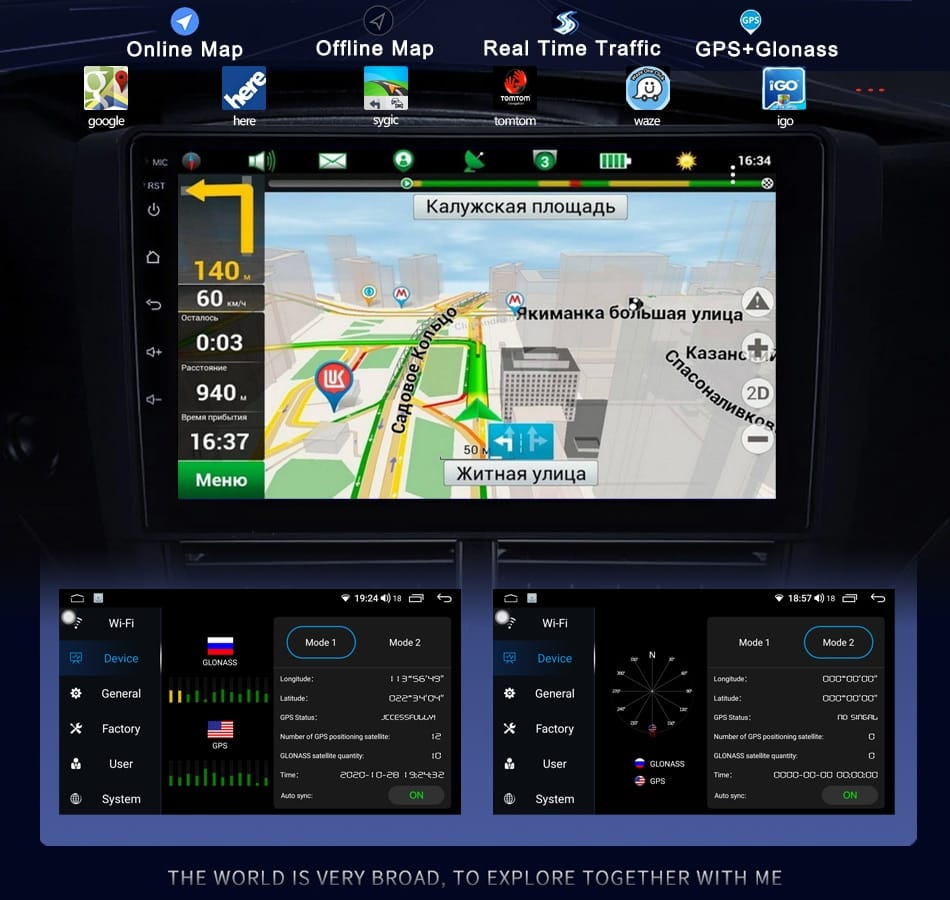

Cool 3D Navigation (GPS+Glonass Dual Satellite)
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.map can be run the background to achieve music navigation functions.
3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.
Support full HD resolution 1920*1080P pixels videos.
Support media format: MP3, VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.SUPPORT.
Support 7 kinds of button colors
Setting your favorite car radio UI,built-in 4 sets of UI
Built-in 4G Modem
Support OBD2(optional)
You can connect a bluetooth OBD2 scanner tool to use this function.
Lv.1
Lv.1
Lv.1
Lv.1
Lv.1
Lv.1 Develop your business with App anywhere anytime
Scan the QR code to download. (Only Android users are supported.)
Idoing 9inch Android 12 Radio Head Unit For Mazda BT50 2020-2025 Car Multimedia Player Navigation GPS Plug And Play DSP Wireless Carplay & Android Auto Car Radio
$358.88 $699.99
