| Product Parameters | |||
| Brand | Idoing | Multi media Parameters | |
| CPU | UIS7865 | Music Format | MP3,WMA,AAC,RM,FLAC etc |
| Operating System | Android 14 system | Picture Format | JPG/BMP/JEPG/GIF/PNG |
| CPU | Dual-core Arm® Cortex®-A75 up to 2.2GHz Six-core Arm® Cortex®-A55 up to 1.8GHz | Video Format | MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8, AVS Streamhellip |
| DDR | SAMSUNG DDR3 4GB | GPS Parameters | |
| EMMC | 64GB | Support Map | Map:google/here/sygic /tomtom/waze/igo... |
| Max External Memory | 128G | Main Frenqency | 1.575GHz |
| Radio | FM/AM | Radio Parameters | |
| Radio IC | NXP6686 | Frenqency Range | FM:76.0MHz-108.0MHz AM: 522KHz-1620KHz |
| Power amplifier IC | TDA7850 | Country | Australia,Europe,Russia, USA1,USA2, |
| Screen | 2.5D IPS Full Touch Screen | Amplifer Parameters | |
| Screen Resolution | 2400*900 | Test Voltage | 14.4V |
| Din | 0 din | Max output power | 4*50W |
| Bluetooth IC | BC 5.0 | WIFI Parameters | |
| Power supply | 4*50W | RF Power | 15dBM |
| Video Decoder | 1080P HW | Power supply | Vcc_3.3V |
| DSP | 32-Bands Equalisation | Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| OSD Language | English,Russian,Portuguese,Arabic,German, French...for up to 70 national languages | Interface type | USB2.0 |
| Built in | Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen, Mirror Link for andriod phone and iphone,WIFI | Frequency | 2.4-2.484GHz |
| Support | Support external Car-Play,Andriod Auto,DAB+, Bluetooth,OBD2,Reverse Camera,USB DVR | Modulation | OFDM/DBPSK/DQPSK/CCK |

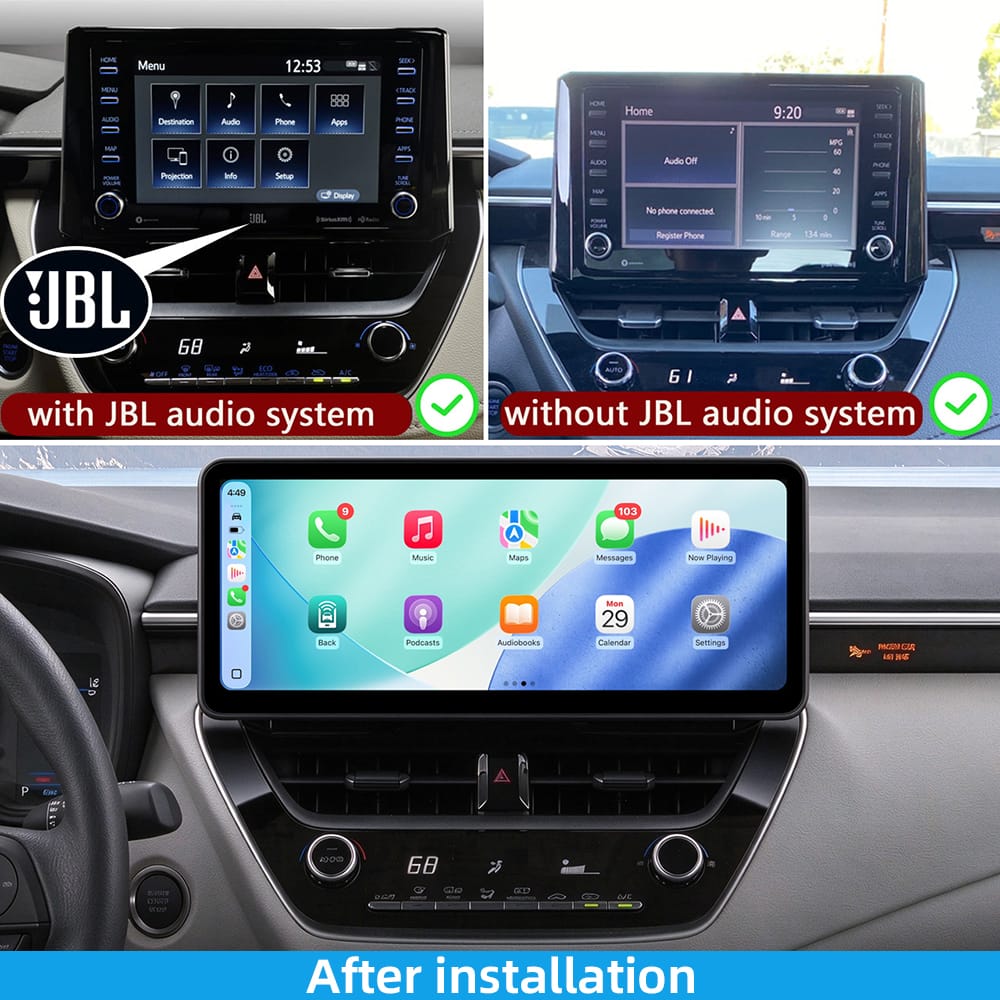

Car model number and year for your reference:
For Toyota Corolla 2019-2023
If you are not sure whether the car radio is compatible, please contact us and provide a photo of the car radio.
All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of car company marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping cost.
Android Operating System
Built-in (Wireless/Wired Carplay+Wireless/Wired Android Auto)
Support OEM Factory Camera
Seamlessly compatible with original factory camera systems for stable and reliable performance; it also supports after-market cameras, offering flexible installation options to meet different user needs.
Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
2.5D IPS QLED Full Touch Screen
2.5D HD IPS display with 2400×900 resolution delivers sharp, vivid visuals and clear viewing from all angles, with scratch-resistant curved glass for added durability.
Cool 3D Navigation (GPS+Glonass Dual Satellite)
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
3.Support maps: google/here/sygic/tomtom/waze/igo…
Build-in 32 Equalizer Digital Signal Processing(DSP)
Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.
Qualcomm bluetooth 5.0
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).
3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
5.Can not support:file transfer,internet sharing.
Support OBD2(optional)
You can connect a bluetooth OBD2 scanner tool to use this function.
Support ADAS USB DVR(optional)
Support AHD Rear View Camera(optional)
Support AHD reversing signal input with a resolution of 1080p.This requires an AHD dedicated camera.
Support DAB+(optional)
1.connect with a DAB+Box via USB port to use DAB+ function.
2.support input digital radio programs and touch operation.
3.support touchscreen to search programs.
Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
Lv.1
Lv.1
Lv.1
Lv.1
Lv.1
Lv.1 Develop your business with App anywhere anytime
Scan the QR code to download. (Only Android users are supported.)

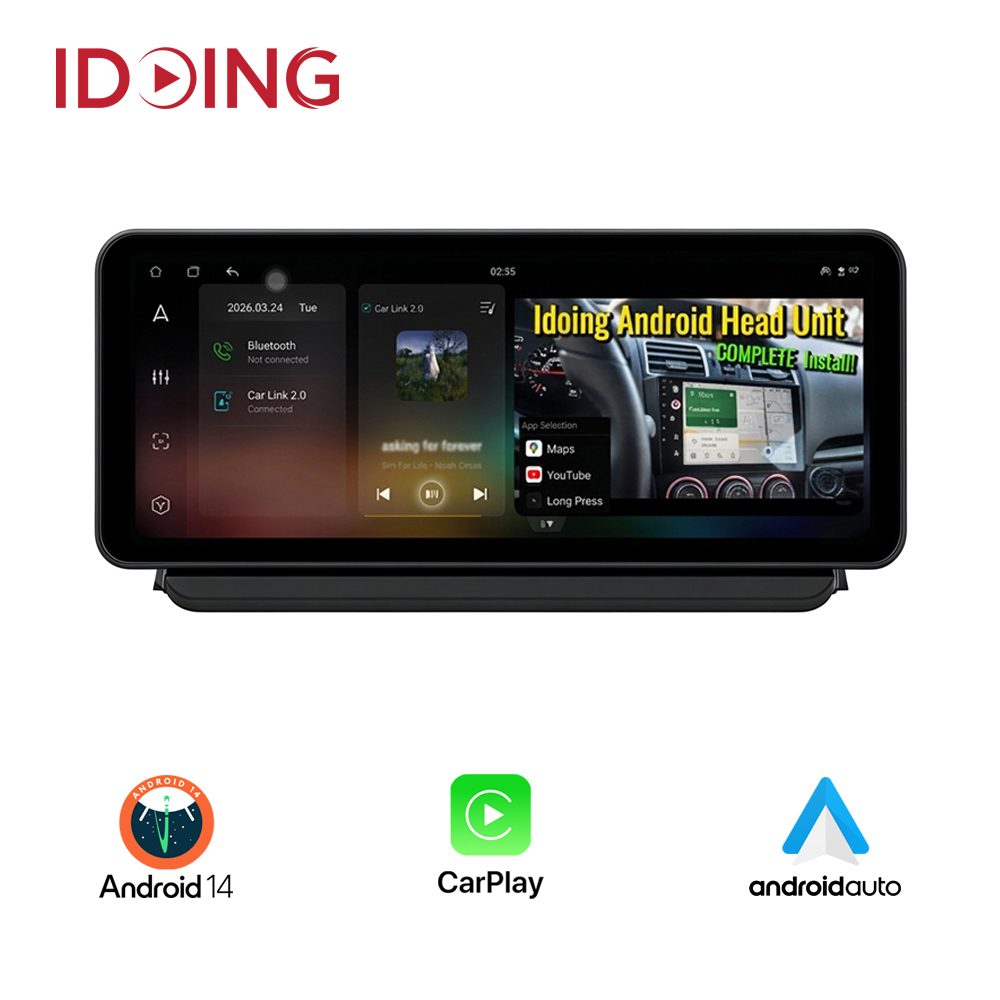

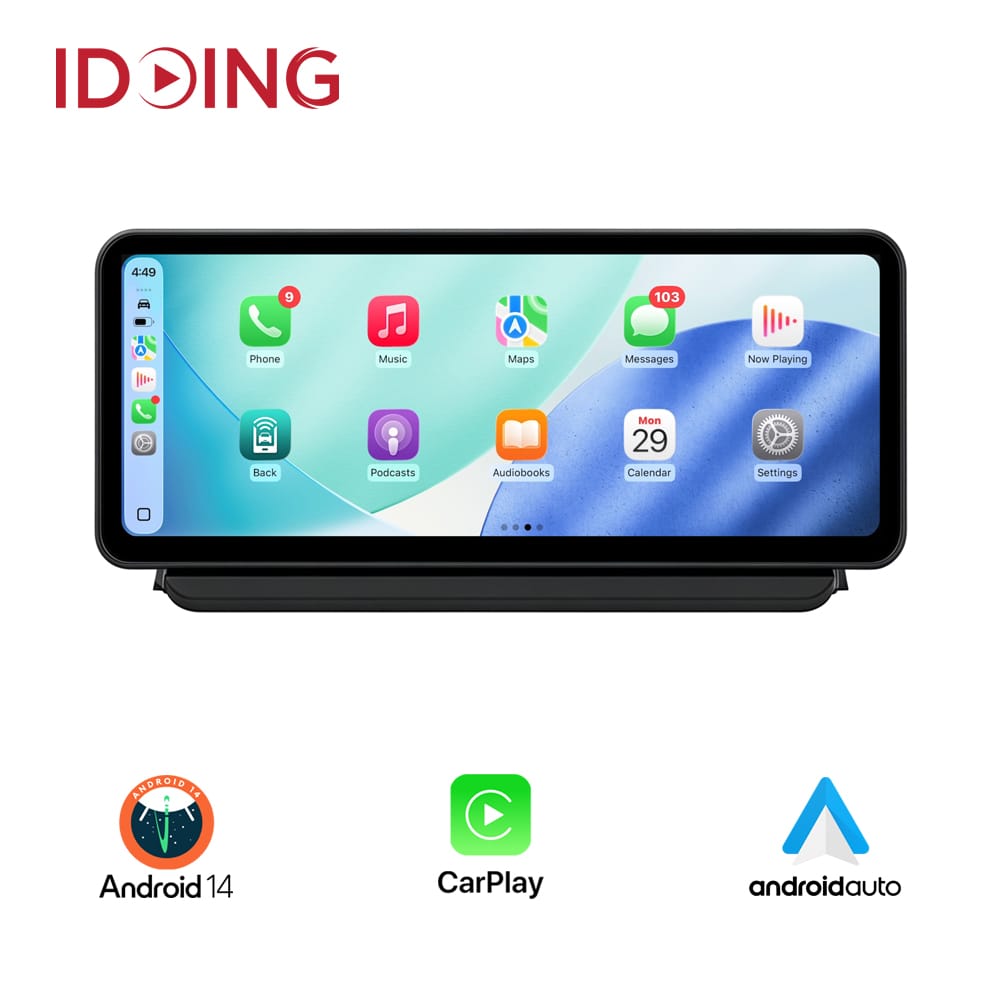

Idoing 12.3inch Android 14 Radio Head Unit For Toyota Corolla 2019-2023 Camry 8 2020-2023 Wireless Carplay & Android Auto Car Radio Multimedia Video Player Navigation Stereo GPS
$459.99 $799.99
