| Product Parameters | |||
| Brand | Idoing | Multi media Parameters | |
| CPU | UIS7870SC, Octa core 2.7GHZ | Music Format | MP3,WMA,AAC,RM,FLAC etc |
| Operating System | Android 13 system | Picture Format | JPG/BMP/JEPG/GIF/PNG |
| GPU | ARM R Cortex - A76 up to 2.7GHz, ARM R Cortex - A76 up to 2.3GHz, ARM R Cortex - A55 up to 2.1GHz, | Video Format | MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8, AVS Streamhellip |
| DDR | SAMSUNG DDR3 6GB | Radio Parameters | |
| EMMC | 128GB | Frenqency Range | FM:76.0MHz-108.0MHz AM: 522KHz-1620KHz |
| Din | 1 din | Country | Australia,Europe,Russia, USA1,USA2, |
| Radio | FM/AM | Amplifer Parameters | |
| Screen | 2.5D IPS Full Touch Screen | Test Voltage | 14.4V |
| Screen Resolution | 1280*720 / 2000*1200 | Max output power | 4*48W |
| Max External Memory | 256G | GPS Parameters | |
| Radio IC | NXP6686 | Support Map | Map:google/here/sygic /tomtom/waze/igo... |
| Power amplifier IC | TDA6686 | Main Frenqency | 1.575GHz |
| Bluetooth IC | BC 5.0 | WIFI Parameters | |
| Power supply | 4*50W | RF Power | 15dBM |
| Video Decoder | 1080P HW | Power supply | Vcc_3.3V |
| DSP | 36-Bands Equalisation | Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| OSD Language | English,Russian,Portuguese,Arabic,German, French...for up to 70 national languages | Interface type | USB2.0 |
| Built in | Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen, Mirror Link for andriod phone and iphone,WIFI | Frequency | 2.4-2.484GHz |
| Support | Support external Car-Play,Andriod Auto,DAB+, Bluetooth,OBD2,Reverse Camera,USB DVR | Modulation | OFDM/DBPSK/DQPSK/CCK |
Car model number and year for your reference:
For Honda Civic 2022-2026

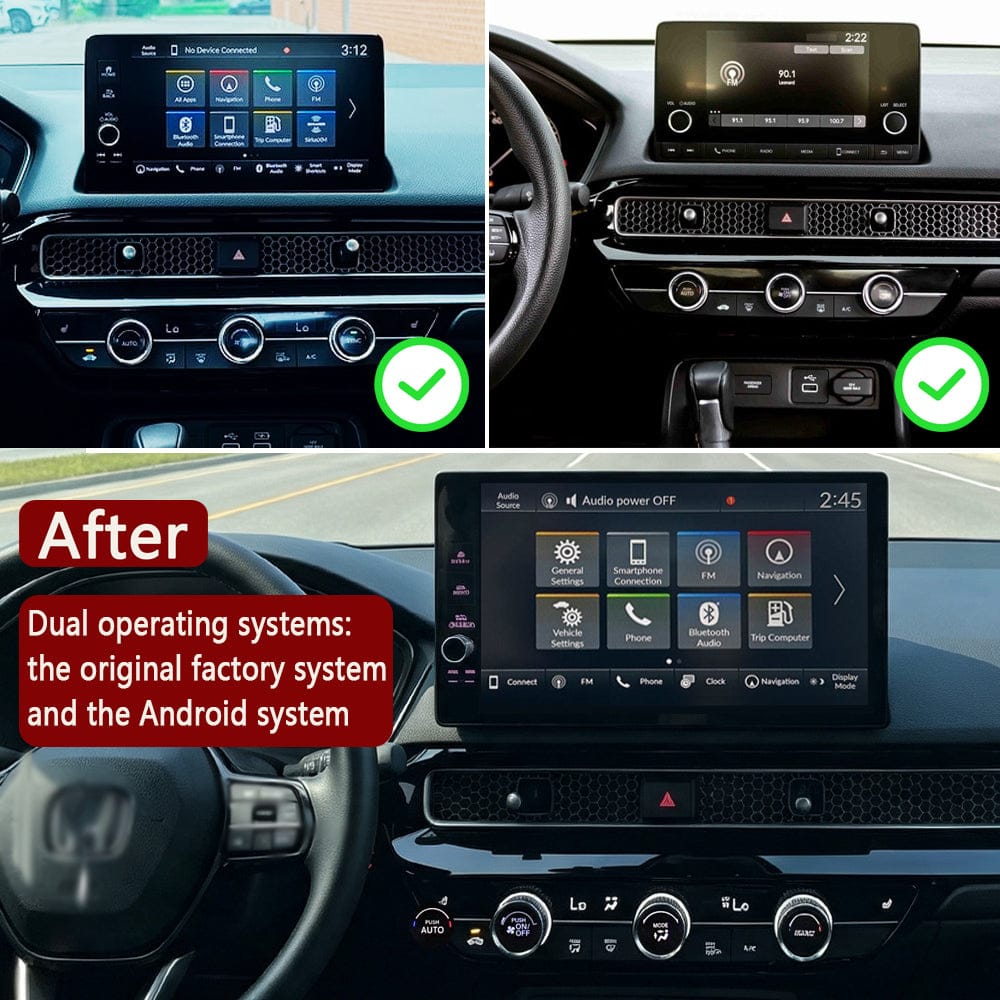

Make Sure Your OEM Radio Matchs Photos
If you are not sure whether the car radio is compatible, please contact us and provide a photo of the car radio.
All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of car company marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping cost.
Android Operating System
Built-in (Wireless/Wired Carplay+Wireless/Wired Android Auto)
Support OEM Factory Camera
This device is fully compatible with original factory cameras, including reversing cameras and 360° panoramic cameras. It delivers original visual effects and stable image display.
Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
QLED Full Touch Screen
2.5D,prevent scraping,IPS screen for all viewing angles very clear.
Multiple Global Navigation Satellite Systems
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
3.Support maps:google/here/sygic/tomtom/waze/igo...
Build-in 36 Equalizer Digital Signal Processing(DTS)
1.Powerful 4×50W output delivers rich, immersive in-car sound.
2.Built-in DTS audio creates cinematic, 3D surround experience.
3.High signal-to-noise ratio ensures crystal-clear music playback.
4.Optimized for car head units—stable, cool, and noise-free.
5.No external amp needed—original speakers sound dramatically better.
Bluetooth 5.0
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).
3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
5.Can not support:file transfer,internet sharing.
Support OBD2(optional)
You can connect a bluetooth OBD2 scanner tool to use this function.
Support ADAS USB DVR(optional)
Support AHD Rear View Camera(optional)
Support AHD reversing signal input with a resolution of 1080p.This requires an AHD dedicated camera.
Support DAB+(optional)
1.connect with a DAB+Box via USB port to use DAB+ function.
2.support input digital radio programs and touch operation.
3.support touchscreen to search programs.
Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
