| Product Parameters | |||
| Brand | Idoing | Multi media Parameters | |
| CPU | UIS7865 | Music Format | MP3,WMA,AAC,RM,FLAC etc |
| Operating System | Android 14 system | Picture Format | JPG/BMP/JEPG/GIF/PNG |
| CPU | Dual-core Arm® Cortex®-A75 up to 2.2GHz Six-core Arm® Cortex®-A55 up to 1.8GHz | Video Format | MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8, AVS Streamhellip |
| DDR | SAMSUNG DDR3 4GB | GPS Parameters | |
| EMMC | 64GB | Support Map | Map:google/here/sygic /tomtom/waze/igo... |
| Max External Memory | 128G | Main Frenqency | 1.575GHz |
| Radio | FM/AM | Radio Parameters | |
| Radio IC | NXP6686 | Frenqency Range | FM:76.0MHz-108.0MHz AM: 522KHz-1620KHz |
| Power amplifier IC | TDA7850 | Country | Australia,Europe,Russia, USA1,USA2, |
| Screen | 2.5D IPS Full Touch Screen | Amplifer Parameters | |
| Screen Resolution | 1920*720 | Test Voltage | 14.4V |
| Din | 0 din | Max output power | 4*50W |
| Bluetooth IC | BC 5.0 | WIFI Parameters | |
| Power supply | 4*50W | RF Power | 15dBM |
| Video Decoder | 1080P HW | Power supply | Vcc_3.3V |
| DSP | 32-Bands Equalisation | Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| OSD Language | English,Russian,Portuguese,Arabic,German, French...for up to 70 national languages | Interface type | USB2.0 |
| Built in | Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen, Mirror Link for andriod phone and iphone,WIFI | Frequency | 2.4-2.484GHz |
| Support | Support external Car-Play,Andriod Auto,DAB+, Bluetooth,OBD2,Reverse Camera,USB DVR | Modulation | OFDM/DBPSK/DQPSK/CCK |
Car model number and year for your reference:

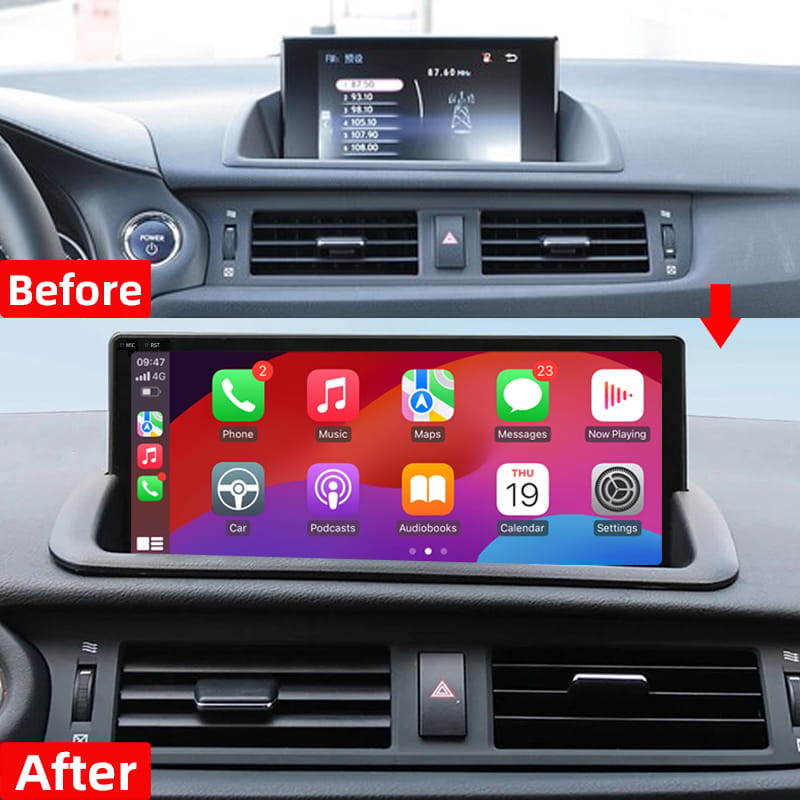

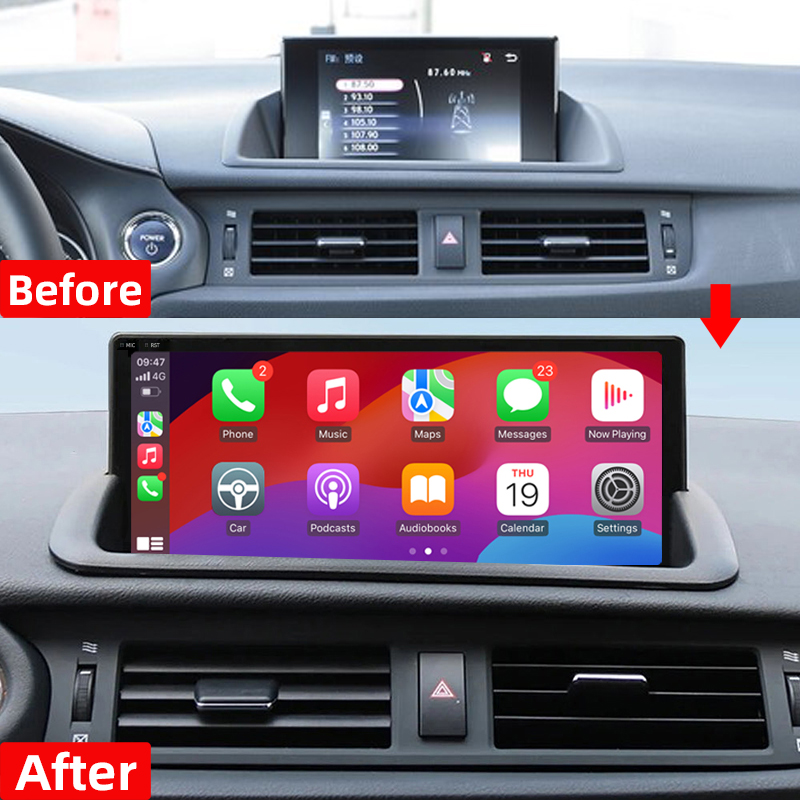

For 2011-2019 Lexus CT200H
If you are not sure whether the car radio is compatible, please contact us and provide a photo of the car radio.
All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of car company marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping cost.
Android Operating System
Support OBD2(optional)
You can connect a bluetooth OBD2 scanner tool to use this function.
Support ADAS USB DVR(optional)
Support AHD Rear View Camera(optional)
Support AHD reversing signal input with a resolution of 1080p.This requires an AHD dedicated camera.
Support DAB+(optional)
1.connect with a DAB+Box via USB port to use DAB+ function.
2.support input digital radio programs and touch operation.
3.support touchscreen to search programs.
Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
