Your position: Home > American Brand Android Headunit > For Jeep > Idoing Car Stereo Audio Radio Multimedia Video Player Navigation GPS For Jeep Grand Cherokee WK2 2008-2017 Head Unit 8G+128G

Idoing Car Stereo Audio Radio Multimedia Video Player Navigation GPS For Jeep Grand Cherokee WK2 2008-2017 Head Unit 8G+128G

GT2080

(0 Reviews)

price:

$428.12 $698.12

Ships From:

China

Color:

8G-128G

Quantity:

- + (500 available)

Shipping Cost:

--- to via ---

Sales: 7
Add to Favorite Items (655)

Do you want to make money?

Join us to promote this product via an exclusive coupon code !

Lv.1 Lv.1 0% OFF

Description

Idoing Car Stereo Audio Radio Multimedia Video Player Navigation GPS For Jeep Grand Cherokee WK2 2008-2017 Head Unit 8G+128G

Full installation video:    https://youtu.be/WbELtYw6te0

BrandIdoing
DinUltra-thin
Operating SystemAndroid system
CPU4xA73@2.0GHz+4xA53@1.8GHz-58KDMIPS
DDR8GB
EMMC128GB
Max External Memory256G
RadioFM/AM/RDS
Screen2.5D QLED
Screen Resolution1280*720
GPUAdreno 610 950MHz
Radio ICSI47925
Power amplifier ICTDA7851
Bluetooth ICBC5.0
Power supply4*45W max
Video Decoder1080P HW
DTS48-Band Equalisation
OSD LanguageEnglish,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages
Built inWifi,GPS+GLONASS+BDS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI
SupportSupport external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DV
Multi media Parameters
Music FormatMP3,WMA,AAC,RM,FLAC etc
Video FormatMPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip
Picture FormatJPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency RangeFM:76.0MHz-108.0MHz
Frenqency RangeAM: 522KHz-1620KHz
CountryAustralia,Europe,Russia,USA1,USA2,

Amplifer Parameters
Test Voltage14.4V
Max output power4*45W
GPS Parameters
Support MapAndroid 10.0 Map:google/here/sygic/tomtom/waze/igo...
Main Frenqency1.575GHz
WIFI Parameters
Power supplyVcc_3.3V
Suppoted Protocol/standardIEEE802.11B/g/n compatible WLAN
Interface typeUSB2.0
Frequency2.4-2.484GHz
ModulationOFDM/DBPSK/DQPSK/CCK
RF Power15dB


Could you take a picture to show your car center dash console if you are confused!



Idoing 9" Universal Newest Version Android Car GPS System

Vehicle Fit List and Installation TIPS:

car model number and year for your reference:

For Jeep Grand Cherokee WK2 2008-2017



 Product installation size(Very important)

All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of car company marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping cost.

FAQ:

1.Why can't turn on the car stereo?

(1)Please check the Voltage of car stereo: 12V

(2)When you test this car stereo,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.

(3)Replace the same type of insurance to test the car radio.



2.Why the car stereowill show "No Signal" when we reversing?

Please check if the camera's line is properly connected to the car radio. Note:The video port of rear camera must insert the "CAMIN" port of car radio.Camera still need to connect with your car reverse-light cable to get 12v.



3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?

Please turn off the "Video Warning" function in the settings,then will be OK.



4.Why can't search FM?

(1)No radio antenna inserted;

(2)Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;

(3)The signal of your location is not good. Please go to a better place to test again

(4)The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.



5.Why can't connect the Bluetooth of car radio?

(1)Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234.

(2)Please try to use another mobile phone to test this function. Please check if the Bluetooth receiving antenna is properly connected All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.



6.Bluetooth signal is weak, WiFi signal is weak:

Please check and reconnect the Yellow rear Camera input connector, there are 2 short cables, they are the extension cords of the Bluetooth antenna and the WiFi antenna, or you can extend them to enhance the signal.



7.The navigation map does not work:

Check whether the GPS has a signal, click GPS signal detection, if there is a signal, then reinstall a new map or open the mobile WiFi hotspot. If there is no GPS signal, leave the garage and test the GPS interface voltage on the road. The voltage must be 3.3V, otherwise the GPS antenna should be replaced.



8.The screen display is abnormal:

Click the one-key recovery button, if it can't be solved, remove the screw on the back, check whether the screen cable is loose, and reconnect the screen cable.



9.Abnormal sound:

(1)Check whether the original car cable has been modified by another car owner. If so, please check the speaker cable and reconnect it.

(2)Check whether there is an original car or a modif



10.Car stereo factory password:

Processor 7862:3368

Processor px6/px5:126

Processor Qualcomm:6666

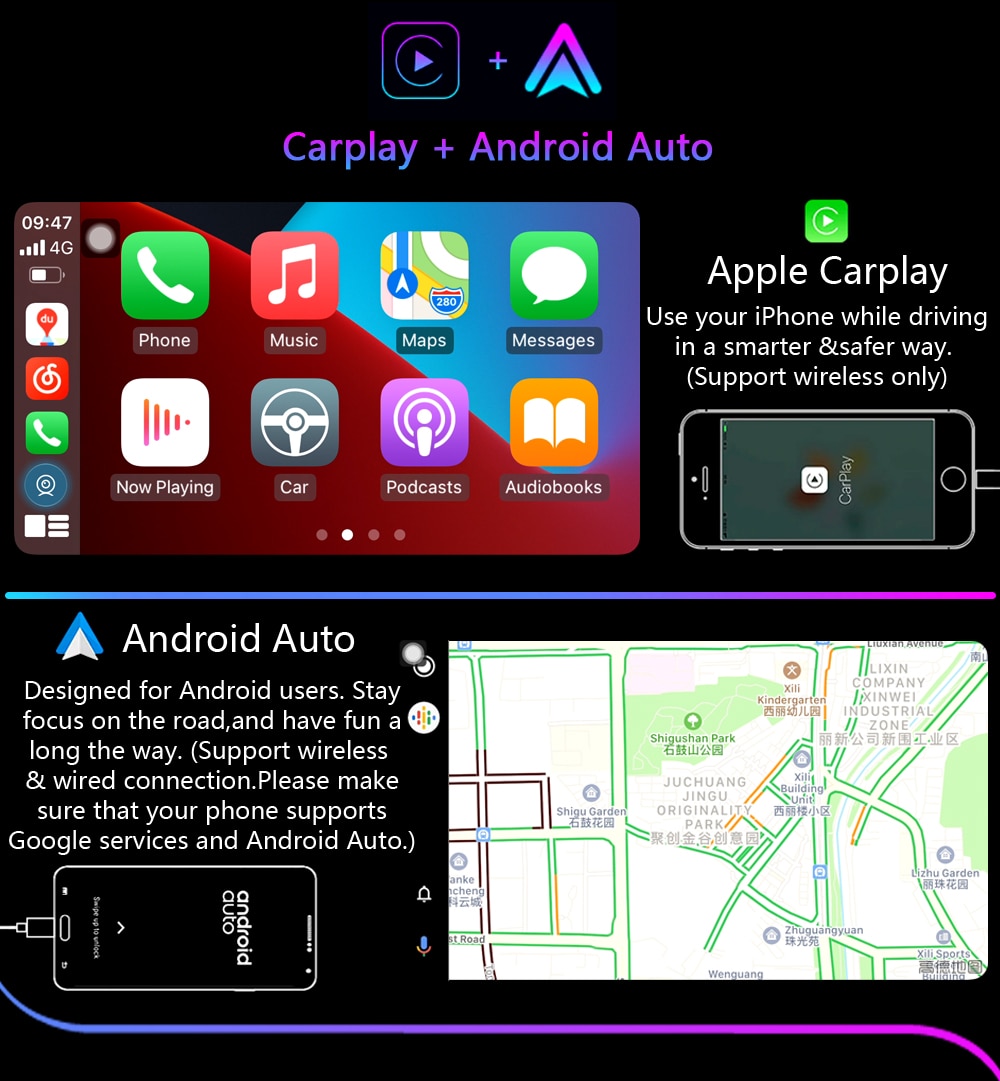

11.Carplay

Wireless carplay or android auto:

Step1:bluetooth need to connect with your phone

Step2:your phone need to connect with idoing android wifi(named:AndroidAP_****)

Wired carplay or android auto: Make sure you are connecting the main usb cable(check with us which one is main usb cable)



12.Car stereocannot be turned on:

(1)The condition for the car stereoto turn on is that ACC (G3) and 12V (G2) are connected to the positive pole of the car's 12V power supply, and G1 is connected to the negative pole of the power supply. There may be a very small probability that the power cord does not match your car. You can directly connect these 3 power cords Connect the power cord of the car without the radio

(2)It may be that the connecting wire of the radio came off during transportation, just open the back cover to check and reconnect the connecting wire inside the radio

(3)If you can't turn on after checking the above steps, please send a video to us for confirmation. The video needs to show that the power cord is normally connected, and test the connection cord with an electric meter to be 12V.
