Idoing 9"Car Radio GPS Multimedia Player Android12 Auto For Subaru Forester 3 SH 2008-2012 4G+64G Octa Core Navigation Head Unit

Idoing 9"4G+64G 2.5D QLED Octa Core Car Android 12 Radio Multimedia Player For Subaru WRX XV Forester Impreza Sti 2008-2014 DSP GPS Navigation no 2din dvd

Brand	Idoing
Din	1 din
Operating System	Android system 12
CPU	ARM 12NM 1.8GHZ, Octa core 2A75+6A55
DDR	SAMSUNG DDR3 4GB
EMMC	64GB
Max External Memory	128G
Radio	FM/AM
Screen	2.5D QLED Full Touch Screen
Screen Resolution	1280*720
GPU	ARM Mali G52 614.4MHz
Radio IC	NXP 6686
Power amplifier IC	TDA7851L
Bluetooth IC	Realtek 8761BTV BC5.1
Power supply	4*45W max
Video Decoder	1080P HW
DSP	32-Band Equalisation
OSD Language	English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages
Built in	Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI
Support	Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR

Multi media Parameters
Music Format	MP3,WMA,AAC,RM,FLAC etc
Video Format	MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip
Picture Format	JPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency Range	FM:76.0MHz-108.0MHz
Frenqency Range	AM: 522KHz-1620KHz
Country	Australia,Europe,Russia,USA1,USA2,

Amplifer Parameters
Test Voltage	14.4V
Max output power	4*45W
GPS Parameters
Support Map	Android 12.0 Map:google/here/sygic/tomtom/waze/igo...
Main Frenqency	1.575GHz
WIFI Parameters
Power supply	Vcc_3.3V
Suppoted Protocol/standard	IEEE802.11B/g/n compatible WLAN
Interface type	USB2.0
Frequency	2.4-2.484GHz
Modulation	OFDM/DBPSK/DQPSK/CCK
RF Power	15dBM

Could you take a picture to show your car center dash console if you are confused!

Idoing 9" Universal Newest Version Android Car GPS System

Vehicle Fit List and Installation TIPS:

car model number and year for your reference:

For Subaru WRX XV Forester Impreza Sti 2008 2009 2010 2011 2012 2013 2014

Tips:

1. If your original car dashboard the same as below photo,and back side the same as below photo,you need special power cable,before ordering,please contact us for this case.

2. If your original car have harm kardon amplifier,please contact us before ordering.

Full installation video from USA John:https://youtu.be/gem02YxvhDE

Radio function video:https://youtu.be/usWMOkJkK2Q.

Provide you with more choices,for up to70national languages.

Android 10.0 Operating System

ARM 12NM Octa-Core

64 bit CPU | up to 1.8GHz

Dual-Core ARM Cortex A75

Hexa-Core ARM Cortex A55

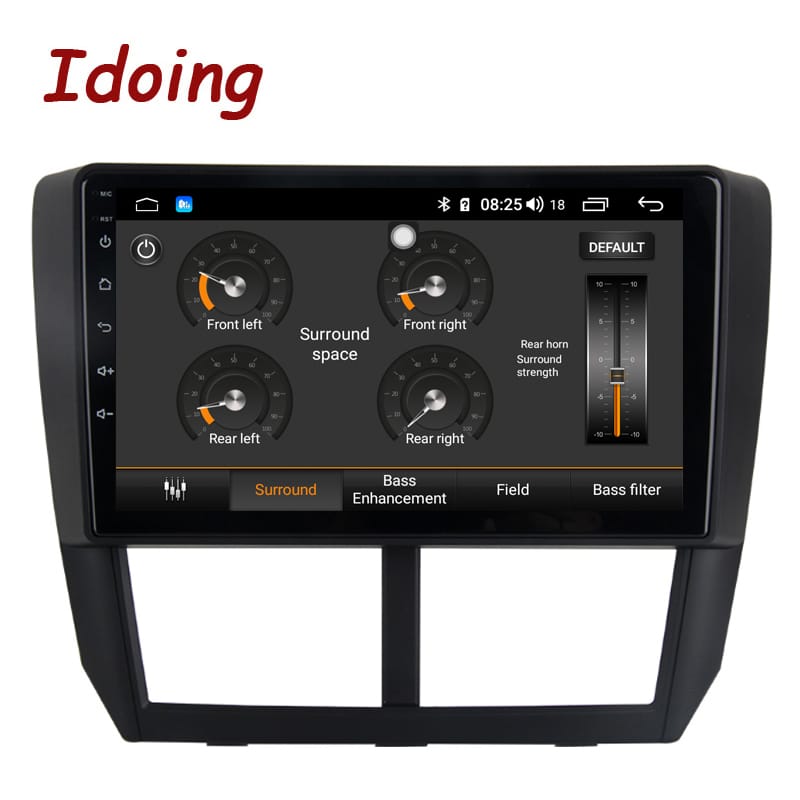

Build-in 32 EqualizerDigital Signal Processing(DSP)

32 Equalizer Adjustments

Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.

2.5D+QLED Display Screen

2.5D,prevent scraping,QLED screen for all viewing angles very clear.

What is 2.5D?Please check this video.https://youtu.be/klQffAjZ4fc

Built-in Car link (Wired+Wireless Carplay+Wired Android Auto)

Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.

Picture in Picture

Minimize the default video player and watching video when using navagation,browser,etc.

FM/AM/RDS Radio

1.Automatic or manual station search function.

2.AM/FM radio (AM 2 bands,FM 3 bands).

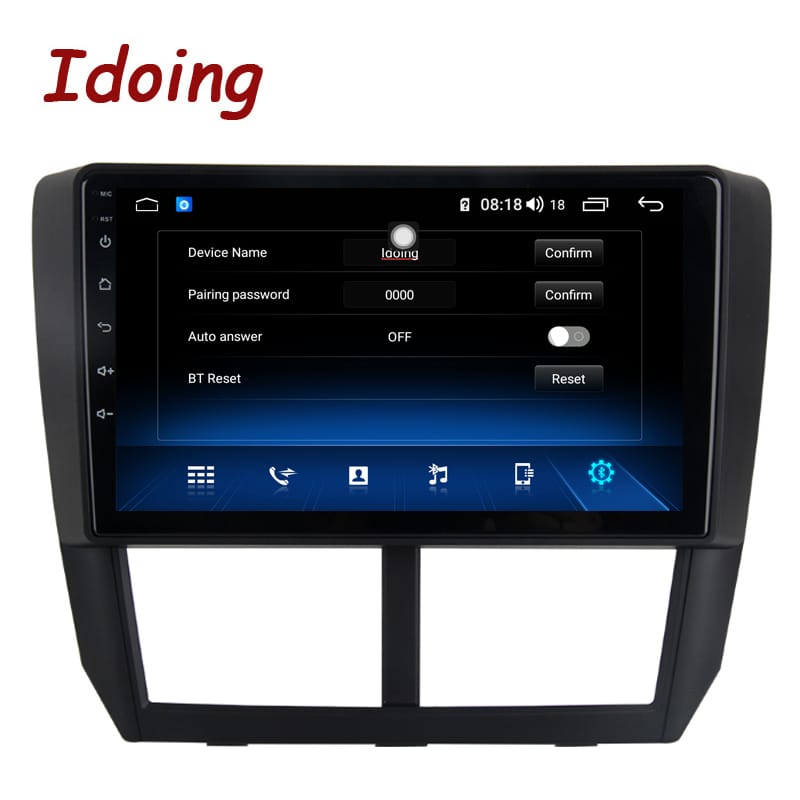

Bluetooth 5.1

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing.

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

Cool 3D Navigation (GPS+Glonass Dual Satellite)

1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.

2.map can be run the background to achieve music navigation functions.

3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

Screen Mirror Link

Using Easy-Connect APP,via USB charging cable and Bluetooth,you can mirror the android phone display such as main menu,photos/videos,Online navi maps.also you can control the Android Phone on this unit.can support the most Android Phone.

For Iphone,use wifi connection,you can mirror the unit,but can not control.

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,only work with the car which support analog signal.
