Your position: Home > Universal Headunit > Idoing 2Din Android 7 inch PX5 4G+64G For VW Universal Jetta Golf Touran Passat Eos Octavia Car Radio Multimedia Player GPS Navigation

Idoing 2Din Android 7 inch PX5 4G+64G For VW Universal Jetta Golf Touran Passat Eos Octavia Car Radio Multimedia Player GPS Navigation

KJD8VW

(0 Reviews)

price:

$248.91 $468.91

Quantity:

- + (1 available)

Shipping Cost:

--- to via ---

Sales: 0
Add to Favorite Items (0)

Do you want to make money?

Join us to promote this product via an exclusive coupon code !

Lv.1 Lv.1 0% OFF

Description



Idoing2Din Android 7"PX5 4G+64G For VW Universal Jetta Golf Touran Passat Eos Octavia Car Radio Multimedia Player GPS Navigation

Brand

Idoing

Din

1 din

Operating System

Android system

CPU

Rockchip PX5 64-bit 8core Cortex-A53 Structure Frequency 1.5G

DDR

SAMSUNG DDR3 4GB

EMMC

64GB

Max External Memory

128G

Radio

FM/AM/RDS

Screen

IPS Full Touch Screen

Screen Resolution

1024*600

GPU

G6110 GPU

Radio IC

NXP 6686

Power amplifier IC

TDA7851

Bluetooth IC

BC 6

Power supply

4*45W max

Video Decoder

1080P HW

DSP

15-Band Equalisation

OSD Language

English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages

Built in

Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,Bluetooth,WIFI

Support

Support external Car-Play,Andriod Auto,DAB+,OBD2,Reverse Camera,USB DVR

Multi media Parameters

Music Format

MP3,WMA,AAC,RM,FLAC etc

Video Format

MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip

Picture Format

JPG/BMP/JEPG/GIF/PNG

Radio Parameters

Frenqency Range

FM:76.0MHz-108.0MHz

Frenqency Range

AM: 522KHz-1620KHz

Country

Australia,Europe,Russia,USA1,USA2,



Amplifer Parameters

Test Voltage

14.4V

Max output power

4*50W

GPS Parameters

Support Map

Android 9.0 Map:google/here/sygic/tomtom/waze/igo...

Main Frenqency

1.575GHz

WIFI Parameters

Power supply

Vcc_3.3V

Suppoted Protocol/standard

IEEE802.11B/g/n compatible WLAN

Interface type

USB2.0

Frequency

2.4-2.484GHz

Modulation

OFDM/DBPSK/DQPSK/CCK

RF Power

15dBM

Note: This radio without AV-OUT function to back seats.If you want this funcion,contact Idoing team before ordering.




Could you take a picture to show your car center dash console if you are confused!

Idoing 8" Universal Newest Version Android Car GPS System

FAQ:

Will this item fit my car?


This unit will fit the following car models:

Jetta 2010-2013 Golf estate 2009-2012 Passat estate 2005-2013

Touran 2009-2013 Polo 2012-2013 Passat sedan 2006-2013

Scirocco 2008-2013 Scirocco R 2009-2013 Passat wagon 2007-2013

haran 2010-2013 Nuevo passat2010-2013 Passat alltrack 2012-2013

Tiguan 2007-2013 Passat CC 2008-2013 Passat variant 2005-2013

Amarok 2012-2013 Caddy 2011-2013 Polo sedan 2010-2013

Eos 2006-2013 Golf 6 2008-2011 Golf wagon 2011-2013

Altea XL 2007-2013 Golf plus 2009-2013 Golf cabriolet 2009-2013

Leon 2006-2013 Golf 5 2003-2009 Jetta sportwagon 2006-2013

Golf GTI 2010-2012 Golf R 2010-2013 The beetle 2011-2013

Fabia 2011-2013 Superb 2008-2013 The beetle convertible 2013

Jetta GLI 2006-2013 Toledo 2004-2013 21st century beetle 2012-2013

Rabbit 2006-2012 Mangotan 2007-2011

Octavia 2009-2012(only fit in some countries,pls contact us fist)


About The Tablet

Provide you with more choices,for up to 70 national languages.

Build-in Digital Signal Processing (DSP)



FM/AM/RDS Radio

1.Automatic or manual station search function.

2.Support RDS function.

3.AM/FM radio (AM 2 bands,FM 3 bands).

Bluetooth 5.0

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing.

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

Cool 3D Navigation (GPS+Glonass Dual Satellite)

1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.

2.map can be run the background to achieve music navigation functions.

3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

Screen Mirror Link

Using Easy-Connect APP,via USB charging cable and Bluetooth,you can mirror the android phone display such as main menu,photos/videos,Online navi maps.also you can control the Android Phone on this unit.can support the most Android Phone.

For Iphone,use wifi connection,you can mirror the unit,but can not control.

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,can only work with the car which support analog signal.

Multimedia Function

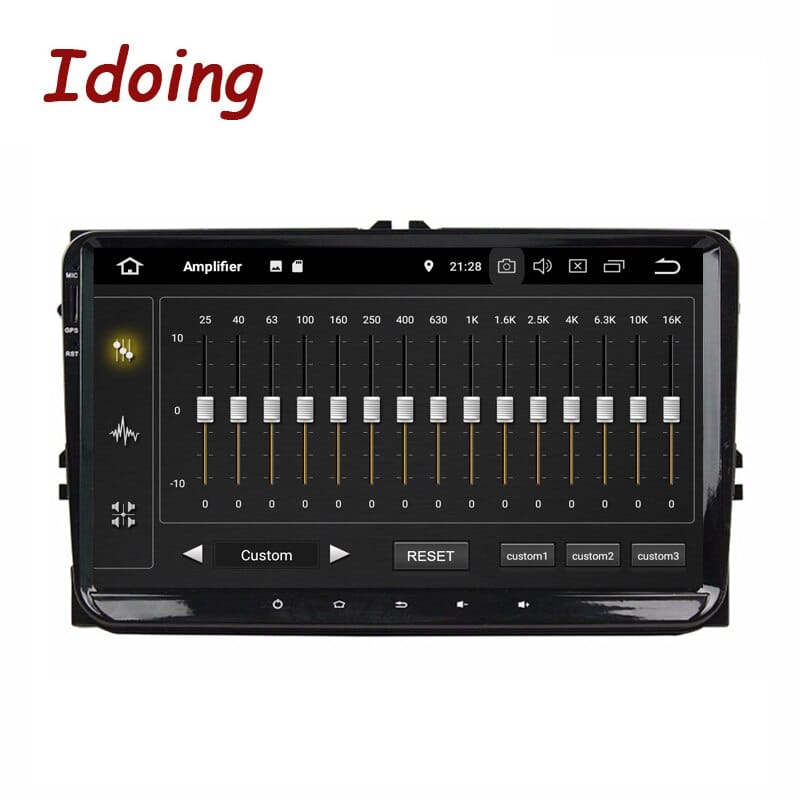

Support 9 EQ Equalizer for music,video display album art,songs title,singer name,lyric info from default player.

Support full HD resolution 1920*1080P pixels videos.

Support media format: MP3, VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.SUPPORT.

Support breakpoint memory play.

Support 7 kinds of button colors

7 colors of button indicator for your multiple choice.

Support OBD2

You can connect a bluetooth OBD2 scanner tool to use this function.

Tips: OBD2 is optional,Suggest you buy it from us.pls click this picture:

Support external 3G/4G Modem

Support EX-3G/4G(WCDMA/CDMA2000/TD-SCDMA standard).
Tips: 3G/4G cable not including,suggest you buy 3G modem from us.

Support Rear View Camera (can not support original car rear view camera)

1.Support reversing mirror, mirror horizontally,rear automatically enter the rear video.

2.Support radar display.

3.Support backing track(track data to provide auto protocol).

Tips: Not inclding rear view camera,suggest you buy it from us.

Support DAB+

1.connect with a DAB+Box via USB port to use DAB+ function.

2.support input digital radio programs and touch operation.

3.support touchscreen to search programs.

Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:














FAQ:

1.Shipping ways
Usually we use  DHL/UPS/Fedex/EMS/HK post... fast shipping.Remote area shipping fee excluded, for addresses listed in the Remote areas on DHL/Fedex website, will be charged an extra USD30-60.

2.Installation
Suggest you install this unit by professional technician.Installation fees must be paid by buyer.
If you received a broken defective item,keep the original package and make a photo to us within 3 days.

3.Warranty and return
All our items are tested to ensure working properly before shipping and come with a 12-month manufacture warranty.The warranty will not cover damage from improper installation, accident, misuse, abuse, improper wiring, and incorrect voltage operating the unit against the instructions in the owner's manual.
It is buyer's responsibility to pay for return postage and ship the item back to us. Please inform us of the reason of your order revocation and send us a clear picture or a video as a proof.

4.Feedback
It'll be appreciated if you can leave us a positive feedback with 5-Star, it's an encouragement to us, and we will do better and better.
Do not hesitate to contact us anytime before and after your purchase,we are committed to your 100% customer satisfaction.
