Idoing 2Din 7"Car Media Player Android Autoradio Head Unit For Mazda Almera Toyota Volkswagen Nissan Kia VW Qashqai Juke Peugeot

Idoing 2Din 7"Car Multimedia Player Android Autoradio Car Head Unit For Mazda Almera Toyota Volkswagen Nissan Kia VW Qashqai Juke Peugeot

Brand	Idoing
Din	2 din
Operating System	Android system 10
CPU	ARM 12NM , Octa core 2.0 GHZ 2A75+1.8GHZ 6A55
DDR	SAMSUNG DDR3 4GB
EMMC	64GB
Max External Memory	128G
Radio	FM/AM
Screen	IPS Full Touch Screen
Screen Resolution	1024*600
GPU	ARM Mali G52 614.4MHz
Radio IC	NXP 6686
Power amplifier IC	TDA7850
Bluetooth IC	BC5.0
Power supply	4*50W max
Video Decoder	1080P HW
DSP	32-Band Equalisation
OSD Language	English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages
Built in	Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI
Support	Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DV

Multi media Parameters
Music Format	MP3,WMA,AAC,RM,FLAC etc
Video Format	MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip
Picture Format	JPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency Range	FM:76.0MHz-108.0MHz
Frenqency Range	AM: 522KHz-1620KHz
Country	Australia,Europe,Russia,USA1,USA2,

Amplifer Parameters
Test Voltage	14.4V
Max output power	4*50W
GPS Parameters
Support Map	Android 10.0 Map:google/here/sygic/tomtom/waze/igo...
Main Frenqency	1.575GHz
WIFI Parameters
Power supply	Vcc_3.3V
Suppoted Protocol/standard	IEEE802.11B/g/n compatible WLAN
Interface type	USB2.0
Frequency	2.4-2.484GHz
Modulation	OFDM/DBPSK/DQPSK/CCK
RF Power	15dBM

Note: This radio without AV-OUT function to back seats.If you want this funcion,contact Idoing team before ordering.

Could you take a picture to show your car center dash console if you are confused!

Idoing 7" Universal Newest Version Android Car GPS System

Full installation video: https://youtu.be/AcJkcQldgX0

Will this item fit my car?

This item will fit for the universal 2 din model with car console size:178*100mm/116*188,can perfect fit your orginal car console with standard 2 din size.

car model number and year for your reference:

for Nissian:

Tiida 2004-2010 Qashqi 2007-2010 Sunny 2005-2007

X-Trail2001-2011 Paladin 2005-2011Frontier 2001-2011

Pathfinder2005-2010 Patrol 2004-2010 Treeano 2005-2010

Versa 2004-2010Micra 2002-2010 Murano 2002-2011

350Z 2003-2009 Livinal 2006-2010 Navara 2001-2011

MP300 2001-2011 X-Trail T31 2008 NV200 2009-2011

Sentra 2007-2011Body T-30/-31Almera in 2014-2016

for Hyundai:

Elantra 2000-2006 Avante XD 2000-2006 Sonata 1999-2007

Sonata Gold 2001-2005Sonata V 6 2001-2005New EF Sonata 2001-2005

Sonica 2001-2005Santafe 2000-2006Santa Fe Classic 2000-2006

Accent 2005-2011 Accent Era 2005-2011 Avega 2005-2011

Veme 2005-2011 Tucson 2004-2012 Terracan 2001-2007

Getz 2002-2012 Lnoko G Getz 2002-2012TB 2002-2012

Getz Prime 2002-2012 Click 2002-2012 Santafe 2013

for other car:

CRV 2003 Passat b5 POLO Hatchback 2007

Lancer 2010 Outlander XL Daewoo Spark

Gentra Transit Mondeo mk3 Forester 2008

Volvo S60 2009 Kia carmival Land Rover

Product installation size(Very important)

All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of car company marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping

Provide you with more choices,for up to70national languages.

Android 10.0 Operating System

ARM 12NM Octa-Core

64 bit CPU

2.0GHz,Dual-Core ARM Cortex A75

1.8GHz,Hexa-Core ARM Cortex A55

IPS Display Screen

IPS screen for all viewing angles very clear.

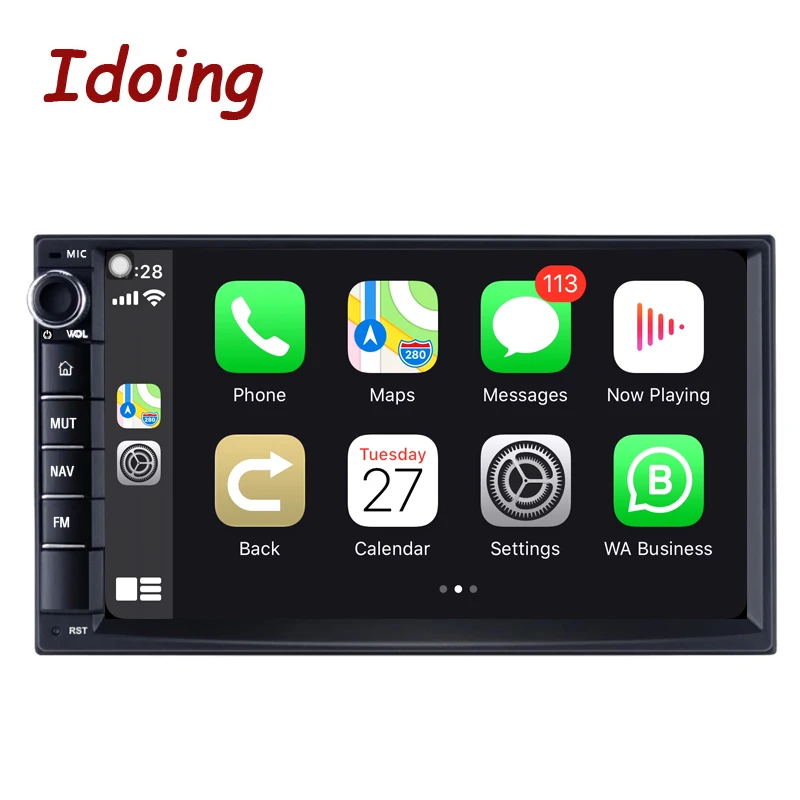

Built-in(wireless+wired) Carplay and Android Auto

Connect by bluetooth or usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.

Build-in 32 EqualizerDigital Signal Processing(DSP)

32 Equalizer Adjustments

Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.

FM/AM/RDS Radio

1.Automatic or manual station search function.

2.AM/FM radio (AM 2 bands,FM 3 bands).

Qualcomm bluetooth 5.0

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing.

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

Cool 3D Navigation (GPS+Glonass Dual Satellite)

1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.

2.map can be run the background to achieve music navigation functions.

3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,can only work with the car which support analog signal.
