Idoing10.2 inch Car Stereo Android AutoRadio Carplay Multimedia Player For Jeep Compass 1 MK 2006-2010 Head Unit Plug And Play GPS

PPP2071

(0 Reviews)

price:

$408.88 $598.88

规格1:

China

规格2:

Standard

Quantity:

- + (500 available)

Shipping Cost:

--- to via ---

Sales: 0
Add to Favorite Items (0)

Do you want to make money?

Join us to promote this product via an exclusive coupon code !

Lv.1 Lv.1 0% OFF

Description

Idoing10.2"Car Stereo Android AutoRadio Carplay Multimedia Player For Jeep Compass 1 MK 2006-2010 Head Unit Plug And Play GPS
BrandIdoing
Din1 din
Operating SystemAndroid system 12
CPUARM 12NM , Octa core  2.0 GHZ 2*A75+1.8GHZ 6*A55
DDRSAMSUNG DDR3 4GB
EMMC64GB
Max External Memory128G
RadioFM/AM
Screen2.5D QLED IPS Full Touch Screen
Screen Resolution1280*720
GPUARM Mali G52 614.4MHz
Radio ICNXP 6686
Power amplifier ICTDA7850
Bluetooth ICBC5.0
Power supply4*50W max
Video Decoder1080P HW
DSP32-Band Equalisation
OSD LanguageEnglish,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages
Built inWifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI
SupportSupport external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DV
Multi media Parameters
Music FormatMP3,WMA,AAC,RM,FLAC etc
Video FormatMPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip
Picture FormatJPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency RangeFM:76.0MHz-108.0MHz
Frenqency RangeAM: 522KHz-1620KHz
CountryAustralia,Europe,Russia,USA1,USA2,

Amplifer Parameters
Test Voltage14.4V
Max output power4*50W
GPS Parameters
Support MapAndroid 12.0 Map:google/here/sygic/tomtom/waze/igo...
Main Frenqency1.575GHz
WIFI Parameters
Power supplyVcc_3.3V
Suppoted Protocol/standardIEEE802.11B/g/n compatible WLAN
Interface typeUSB2.0
Frequency2.4-2.484GHz
ModulationOFDM/DBPSK/DQPSK/CCK
RF Power15dBM



Could you take a picture to show your car center dash console if you are confused!


Idoing 10.2" Universal Newest Version Android Car GPS System


Vehicle Fit List and Installation TIPS:

car model number and year for your reference:

For Jeep Compass 1 MK 2006-2010
Provide you with more choices,for up to70national languages.

Android 12.0 Operating System

ARM 12NM Octa-Core
64 bit CPU

2.0GHz,Dual-Core ARM Cortex A75
1.8GHz,Hexa-Core ARM Cortex A55



2.5D+QLED IPS Display Screen

2.5D,prevent scraping,IPS QLED screen for all viewing angles very clear.

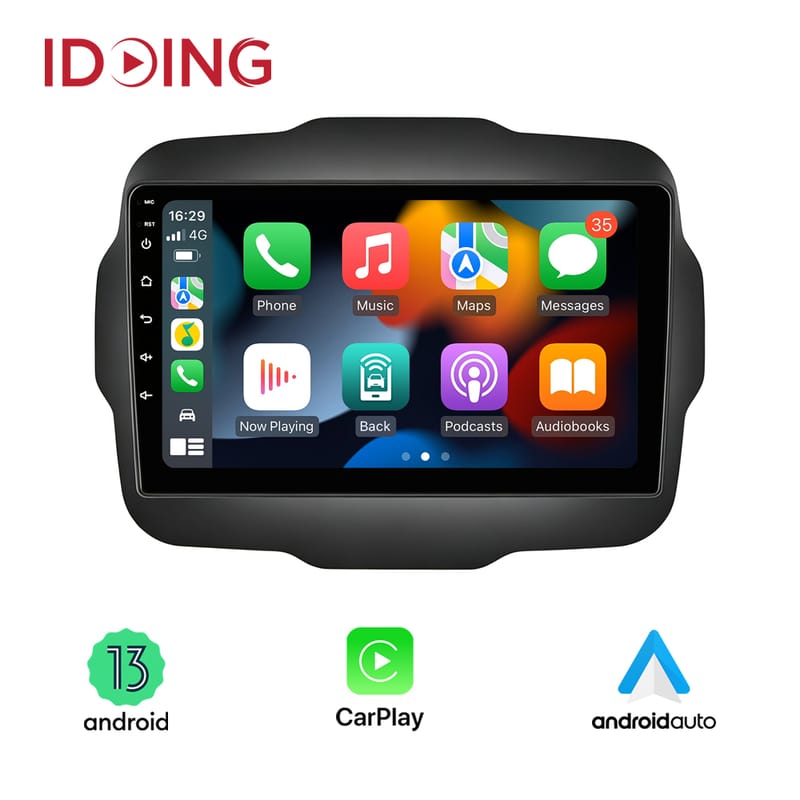

Built-in Carplay(wireless+wire) And Android Auto

Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.

Build-in 32 EqualizerDigital Signal Processing(DSP)

32 Equalizer Adjustments

Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.

FM/AM/RDS Radio

1.Automatic or manual station search function.

2.AM/FM radio (AM 2 bands,FM 3 bands).

Qualcomm bluetooth 5.0

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing.

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

Cool 3D Navigation (GPS+Glonass Dual Satellite)

1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.

2.map can be run the background to achieve music navigation functions.

3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,can only work with the car which support analog signal.

Multimedia Function

Support 9 EQ Equalizer for music,video display album art,songs title,singer name,lyric info from default player.

Support full HD resolution 1920*1080P pixels videos.

Support media format: MP3, VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.SUPPORT.

Support breakpoint memory play.

Support 7 kinds of button colors

7 colors of button indicator for your multiple choice.

Setting your favorite car radio UI,built-in 4 sets of UI

Support OBD2(optional)

You can connect a bluetooth OBD2 scanner tool to use this function.

Tips: OBD2 is optional,Suggest you buy it from us.pls click this picture:

Built-in 4G Modem

Support EX-3G/4G(WCDMA/CDMA2000/TD-SCDMA standard).
Tips: 3G/4G cable not including,suggest you buy 3G modem from us.



Support ADAS USB DVR(optional)



Support AHD Rear View Camera(optional)

Support AHD reversing signal input with a resolution of 1080p.This requires an AHD dedicated camera.

this link to buy this camera.

Support DAB+(optional)

1.connect with a DAB+Box via USB port to use DAB+ function.

2.support input digital radio programs and touch operation.

3.support touchscreen to search programs.

Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
