Idoing Car Android Radio Media Player Head Unit Plug And Play For Volkswagen VW Passat B8 Magotan 2015-2020Stereo GPS Navigation

PPP2055

$398.88 $598.88
Lv.1 Lv.1
0% OFF
规格1:
4G-64G
Optional 1:
Optional 2:
Optional 3:
Optional 4:
Quantity :
500
-
1
+
Shipping cost:
--- to --- via ---
More options
Estimated delivery time:
---
Do you want to start making money?

Join us to promote this product via your exclusive link!

Description

Idoing Car Android Radio Media Player Head Unit Plug And Play For Volkswagen VW Passat B8 Magotan 2015-2020 Stereo GPS Navigation

Brand

Idoing

Din

1 din

Operating System

Android 12 system

CPU

ARM 12NM , Octa core  2.0 GHZ 2*A75+1.8GHZ 6*A55

DDR

SAMSUNG DDR3 4GB

EMMC

64GB



Max External Memory

128G

Radio

FM/AM

Screen

2.5D IPS Full Touch Screen

Screen Resolution

1280*720

GPU

ARM Mali G52 614.4MHz

Radio IC

NXP 6686

Power amplifier IC

TDA7850

Bluetooth IC

BC5.0

Power supply

4*50W max

Video Decoder

1080P HW

DSP

32-Band Equalisation

OSD Language

English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages

Built in

Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI

Support

Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DV

Multi media Parameters

Music Format

MP3,WMA,AAC,RM,FLAC etc

Video Format

MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip

Picture Format

JPG/BMP/JEPG/GIF/PNG

Radio Parameters

Frenqency Range

FM:76.0MHz-108.0MHz

Frenqency Range

AM: 522KHz-1620KHz

Country

Australia,Europe,Russia,USA1,USA2,



Amplifer Parameters

Test Voltage

14.4V

Max output power

4*50W

GPS Parameters

Support Map

Android Map:google/here/sygic/tomtom/waze/igo...

Main Frenqency

1.575GHz

WIFI Parameters

Power supply

Vcc_3.3V

Suppoted Protocol/standard

IEEE802.11B/g/n compatible WLAN

Interface type

USB2.0

Frequency

2.4-2.484GHz

Modulation

OFDM/DBPSK/DQPSK/CCK

RF Power

15dBM



Could you take a picture to show your car center dash console if you are confused!

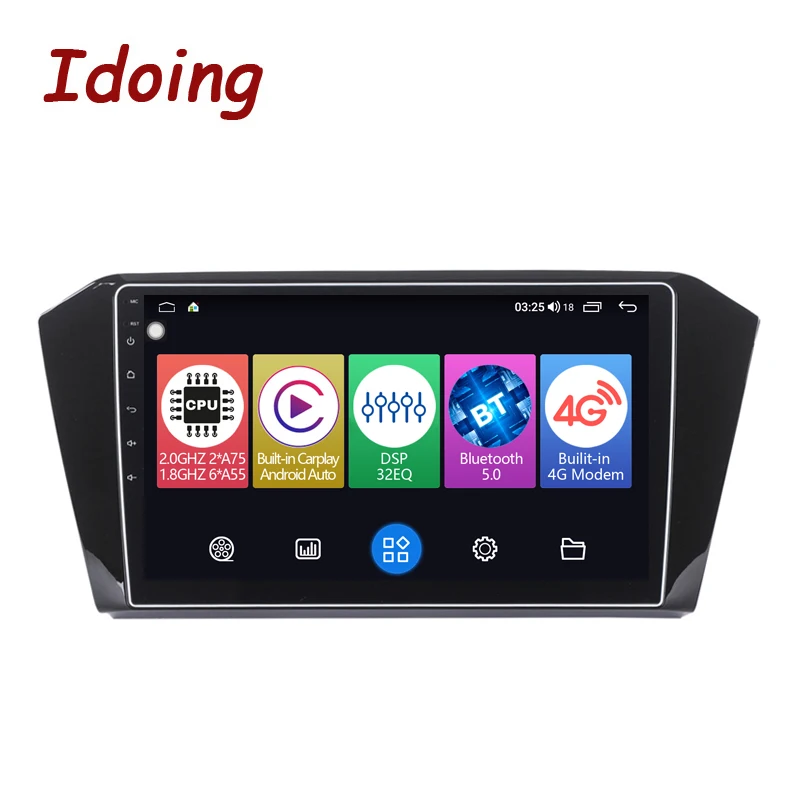

Idoing 10.2" Newest Version Android Car GPS System



Vehicle Fit List and Installation TIPS:

car model number and year for your reference:

For Volkswagen VW Passat B8 Magotan 2015-2020

Provide you with more choices,for up to70national languages.

Android Operating System

ARM 12NM Octa-Core
64 bit CPU

2.0GHz,Dual-Core ARM Cortex A75
1.8GHz,Hexa-Core ARM Cortex A55


2.5D+QLED Display Screen

2.5D,prevent scraping,QLED screen for all viewing angles very clear.



Built-in Car link (Wired+Wireless Carplay/Wired+Wireless Android Auto)

Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.

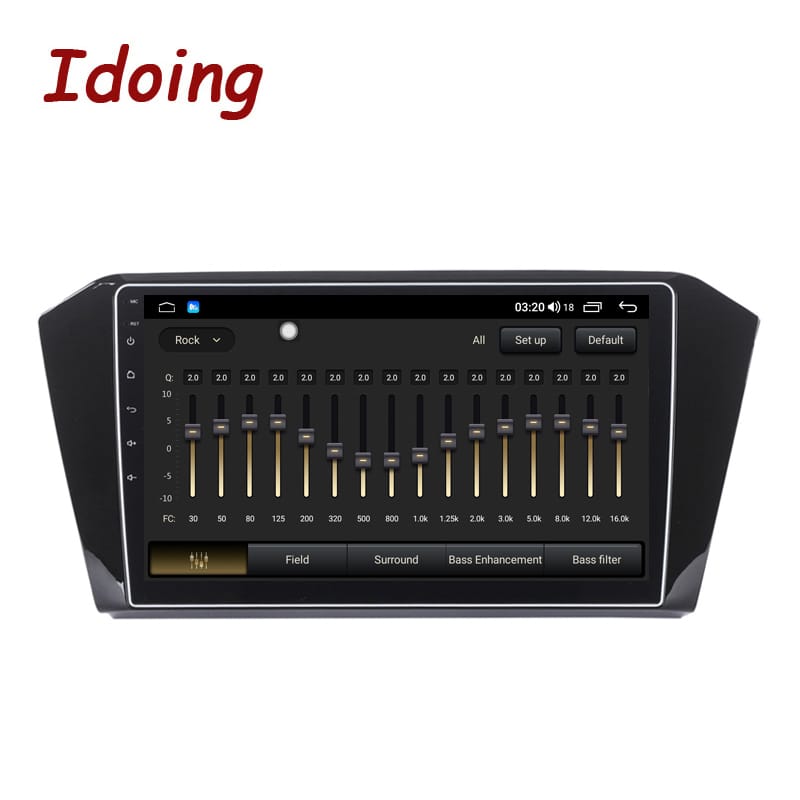

Build-in 32 EqualizerDigital Signal Processing(DSP)

32 Equalizer Adjustments

Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.

FM/AM/RDS Radio

1.Automatic or manual station search function.

2.AM/FM radio (AM 2 bands,FM 3 bands).

Qualcomm bluetooth 5.0

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing.

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

Cool 3D Navigation (GPS+Glonass Dual Satellite)

1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.

2.map can be run the background to achieve music navigation functions.

3.support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,can only work with the car which support analog signal.

Multimedia Function

Support 9 EQ Equalizer for music,video display album art,songs title,singer name,lyric info from default player.

Support full HD resolution 1920*1080P pixels videos.

Support media format: MP3, VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.SUPPORT.

Support breakpoint memory play.

Support 7 kinds of button colors

7 colors of button indicator for your multiple choice.

Setting your favorite car radio UI,built-in 4 sets of UI

Support OBD2(optional)

You can connect a bluetooth OBD2 scanner tool to use this function.

Tips: OBD2 is optional,Suggest you buy it from us.pls click this picture:

Built-in 4G Modem

Support EX-3G/4G(WCDMA/CDMA2000/TD-SCDMA standard).
Tips: 3G/4G cable not including,suggest you buy 3G modem from us.



Support ADAS USB DVR(optional)



Support AHD Rear View Camera(optional)

Support AHD reversing signal input with a resolution of 1080p.This requires an AHD dedicated camera.

this link to buy this camera.

Support DAB+(optional)

1.connect with a DAB+Box via USB port to use DAB+ function.

2.support input digital radio programs and touch operation.

3.support touchscreen to search programs.

Tips: Not including DAB+ BOX,suggest you buy it from us,pls click the picture:
