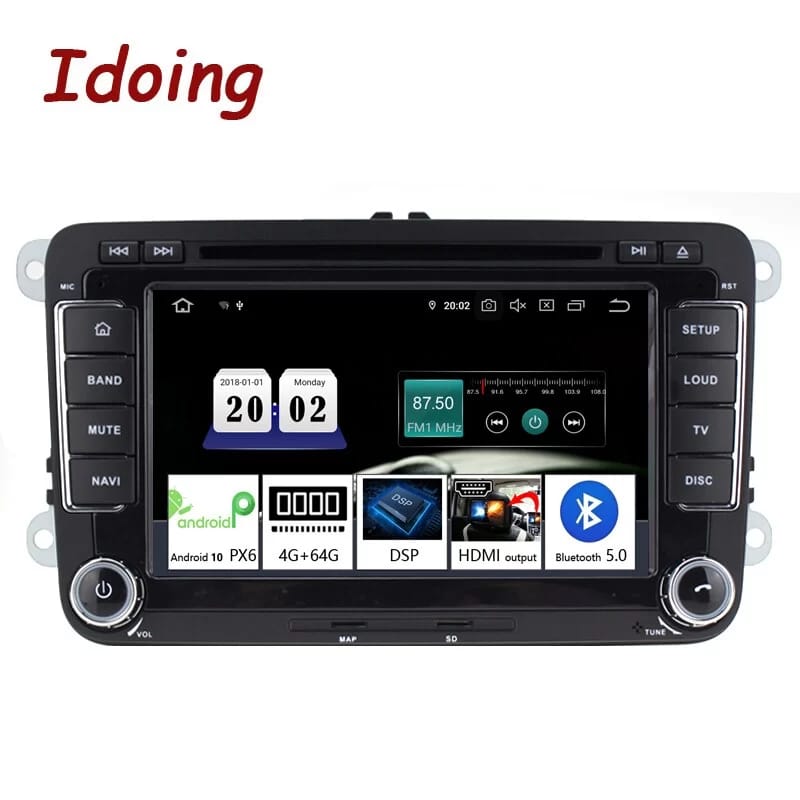

Idoing 7 inch 2din Car Android Radio Player For Touran Passat B6 PX6 4G+64G IPS screen GPS Navigation Multimedia Bluetooth Head Unit

Idoing 7"2din Car Android 10 Radio Player For Volkswagen Touran Passat B6 PX6 4G+64G IPS screen GPS Navigation Multimedia

Brand	Idoing
Din	2 din
Operating System	Android 10 system
CPU	RockchipPX6
DDR	SAMSUNG DDR3 4GB
EMMC	64GB
Max External Memory	128G
Radio	FM/AM/RDS
Screen	IPSFull Touch Screen
Screen Resolution	1024*600
GPU	G6110 GPU
Radio IC	NXP6686
Power amplifier IC	TDA7850
Bluetooth IC	Bluetooth 5.0
Power supply	4*50Wmax
Video Decoder	1080P HW
DSP	Build-in Digital Signal Processing (DSP)
OSD Language	English,Russian,Spanish,Turkish,Portuguese,Arabic,Italian,German,French...for up to 70 national languages
Built in	Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phoneand iphone,WIFI
Support	Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR

Multi media Parameters
Music Format	MP3,WMA,AAC,RM,FLAC etc
Video Format	MPEG-1/2/4,H264,H263,VC1,RV,H265,DivX,Sorenson SparK,Spark,VP8,AVS Streamhellip
Picture Format	JPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency Range	FM:76.0MHz-108.0MHz
Frenqency Range	AM: 522KHz-1620KHz
Country	Australia,Europe,Russia,USA1,USA2,


Amplifer Parameters
Test Voltage	14.4V
Max output power	4*50W
GPS Parameters
Support Map	Android 9.0 Map:google/here/sygic/tomtom/waze/igo...
Main Frenqency	1.575GHz
WIFI Parameters
Power supply	Vcc_3.3V
Suppoted Protocol/standard	IEEE802.11B/g/n compatible WLAN
Interface type	USB2.0
Frequency	2.4-2.484GHz
Modulation	OFDM/DBPSK/DQPSK/CCK
RF Power	15dBM

Note:Note: contact us to pay for extra usd 15 get carplay(wire and wireless)+android auto (wire) functions!!!

Could you please take a picture to show your car center dash console if you are confused

Idoing 7" The Latest Android Car GPS System

This unit will fit the following car models:

For Jetta 2010-2013

ForGolf estate 2009-2012
ForPassat estate 2005-2013
ForTouran 2009-2013
ForPolo 2012-2013
ForPassat sedan 2006-2013
ForPassat wagon 2007-2013
ForScirocco R 2009-2013
ForScirocco 2008-2013
Forharan 2010-2013
ForNuevo passat 2010-2013
ForPassat alltrack 2012-2013

ForTiguan 2007-2013
ForPassat CC 2008-2013
ForPassat variant 2005-2013
ForAmarok 2012-2013
ForCaddy 2011-2013
ForPolo sedan 2010-2013
ForEos 2006-2013
ForGolf 6 2008-2011
ForGolf wagon2011-2013
ForAltea XL 2007-2013
ForGolf plus 2009-2013
ForGolf cabriolet 2009-2013
ForLeon 2006-2013
ForGolf 5 2003-2009
ForJetta sportwagon 2006-2013
ForGolf GTI 2010-2012
ForGolf R 2010-2013
ForThe beetle 2011-2013
ForFabia 2011-2013
ForSuperb 2008-2013
ForThe beetle convertible 2013

ForJetta GLI 2006-2013

ForToledo 2004-2013
For21st century beetle 2012-2013
ForRabbit 2006-2012
ForMangotan 2007-2011
ForOctavia 2009-2012(only fit in some countries,pls contact us fist)

Product installation size(Very important)

All the car model numbers listed are just for reference, you canrsquot depend on it 100%. Because it happens occasionally that the same brand same model car made by different factories may have different car original radio/CD player. Sometimes the same car in different countries may have different names because of carcompany marketing strategy. As a professional international seller, we will try to send you the right product. Exchange products or return will waste your time, import tax and expensive shipping cost.

Provide you with more choices,for up to70national languages.

Android 10 Operating System

HEXA Core Rockchip PX6

64 bit CPU | up to 1.8GHz

BIG CPU: Dual-core Cortex-A72 – Optimized for high-performance

LITTLE CPU: Quad-core Cortex-A53 – Optimized for low power

Experience incredible Performance and improved power efficiency with the powerful Hexa-core 64 bit processor.

IPS Display Screen

IPS screen for all viewing angles very clear.

Build-inDigital Signal Processing(DSP)

FM/AM/RDS Radio

1.Automatic or manual station search function.

2.Support RDS function.

3.AM/FM radio (AM 2 bands,FM 3 bands).

Bluetooth 5.0

1.Built-in bluetooth for hand free calling.

2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

3.Can connect your phone and our OBD dongle simultaneously.

4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

5.Can not support:file transfer,internet sharing.

Silicon crystal microphone

1.silicon crystal mic for bluetooth hand-free calling better sound quality.

2.radio built-in silicon crystal mic and external 3 meters long silicon crystal mic.

QC 3.0(Quick Charge) for you andriod phone and iphone

Quick 2A charge(for premium/pro version)via USB-A cable allows user to replenish phone battery power while streaming bluetooth audio or using WiFi Easy-Connect(Mirrorlink) easily.

Cool 3D Navigation (GPS+Glonass Dual Satellites)

1.Built-in GPS+GLONASS dual satellites positioning system,more accurate positioning,stronger GPS signal.

2.Map can be run the background to achieve music navigation functions.

3.Support GPS dual-zone function,passengers can continue to play multimedia while drive navigating.

4.Support maps:google/here/sygic/tomtom/waze/igo...

5. Pre-install off-line map inside radio flash,if we do not have your country map,we will leave message to let you know.

Screen Mirror Link

Using Easy-Connect APP,via USB charging cable and Bluetooth,you can mirror the android phone display such as main menu,photos/videos,Online navi maps.also you can control the Android Phone on this unit.can support the most Android Phone.

For Iphone,use wifi connection,you can mirror the unit,but can not control.

Steering Wheel Control

Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

TIPS: this function is available for most of the car,can only work with the car which support analog signal.

Multimedia Function

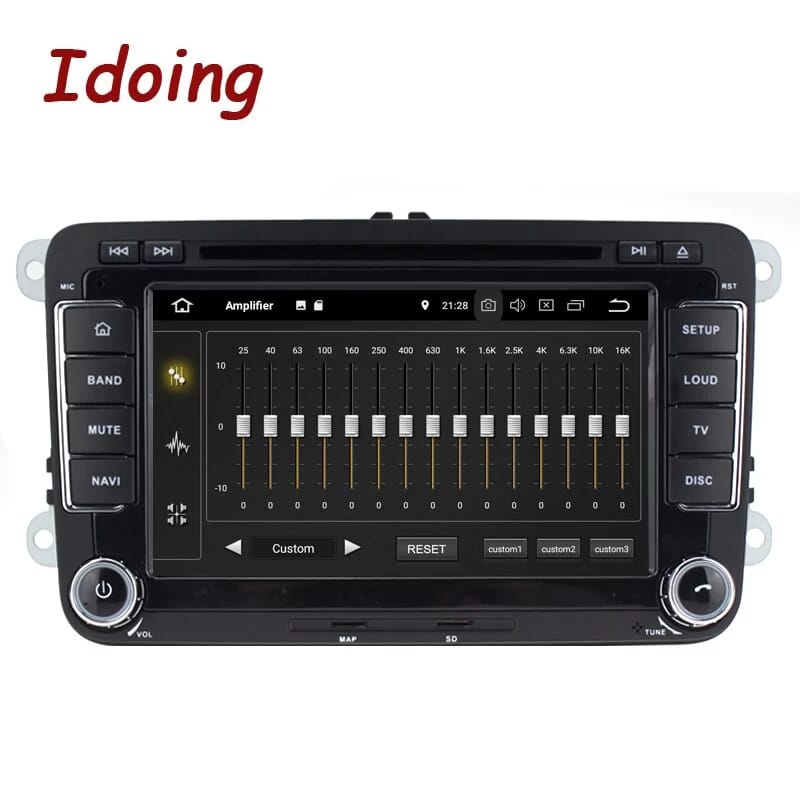

Support 9 EQ Equalizer for music,video display album art,songs title,singer name,lyric info from default player.

Support full HD resolution 1920*1080P pixels videos.

Support media format: MP3,VMA,MPEG1/2/4,JPEG,DVIX,CD-DA,CD-TEXT.

Support breakpoint memory play.

HDMI Output

The HDMI output port provides a connection method between the head unit and an HDMI enabled monitor or other device. With an HDMI cable, you can share the high definition video and high quality audio with all passengers in your vehicle.
